Harfanglab EDR

Overview

HarfangLab EDR is a European EDR for Windows, macOS, and Linux that delivers real-time telemetry, ATT&CK-mapped detections, and rapid response (host isolation, process kill, quarantine). This setup guide shows how to forward device assets monitored by HarfangLab EDR to Sekoia.io.

  • Vendor: HarfangLab
  • Product: HarfangLab EDR
  • Supported environment: SaaS

Configure

How to create an API token

To connect HarfangLab to Sekoia.io, you need to create an API key in your HarfangLab console. Follow these steps:

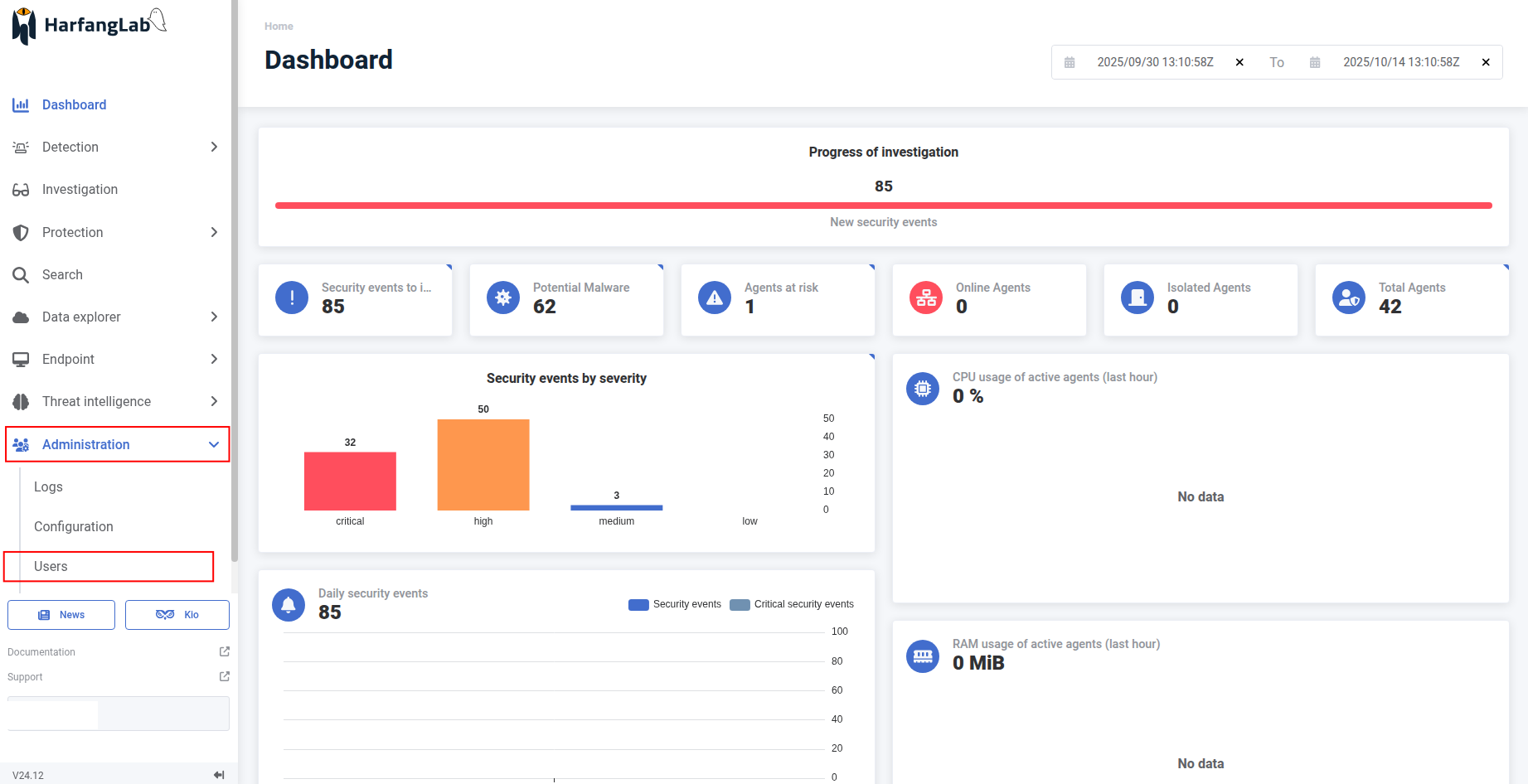

  1. Click on Users under administration panel.

    Account page showing navigation to API Keys tab in HarfangLab

  2. Click on the user you want.

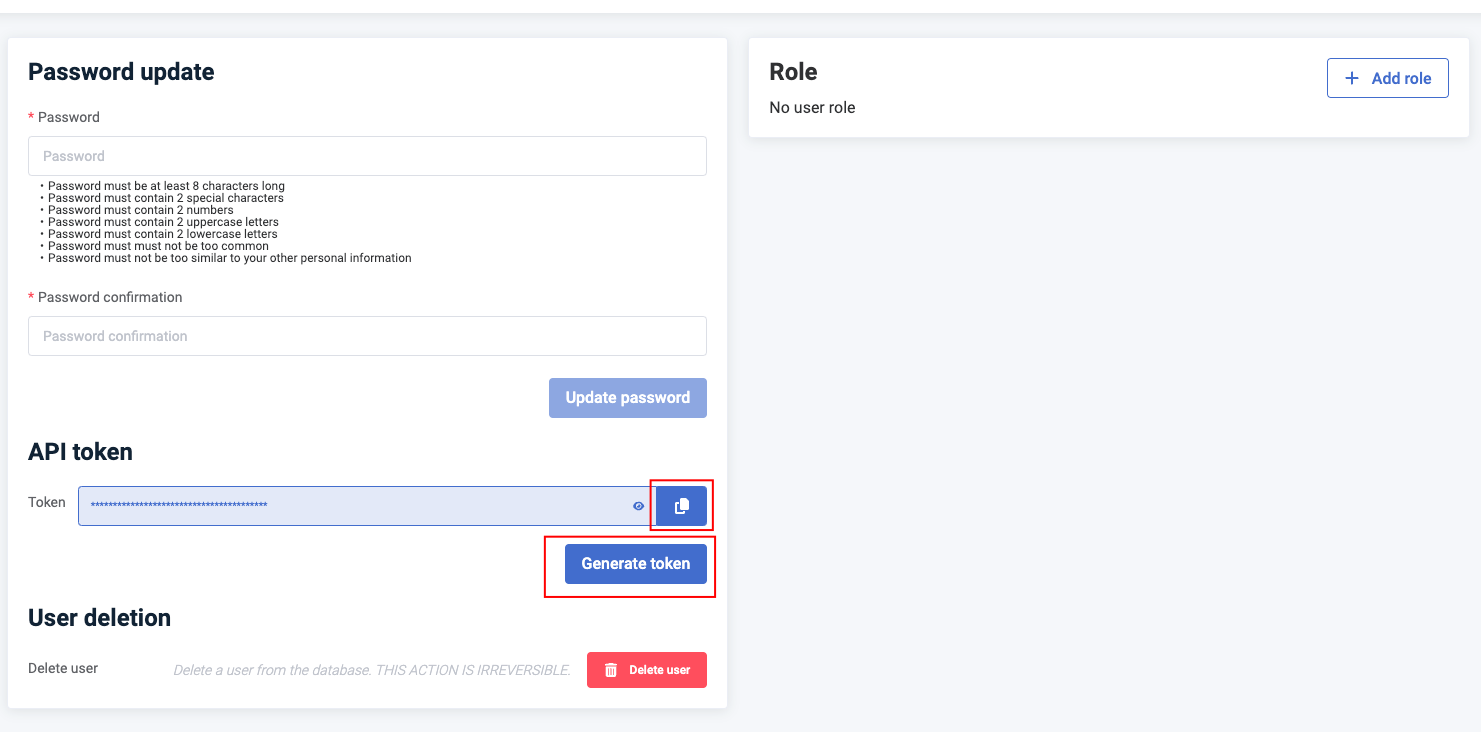

  3. Click Generate token to generate API token.

    Generate API Keys button highlighted for clarity

  4. Copy the API key to a safe place and start using it in Sekoia.io.

Warning

  • Ensure the user account exists before generating an API token.
  • The API token is displayed only once at creation. Save it securely; if you lose it, you must generate a new one.
  • When copying the API key, ensure you copy only the raw key value (excluding any token_ prefix if displayed).

Create your asset

To start getting your HarfangLab assets into Sekoia.io, you need to create an asset connector on the Assets page. To do so, follow these steps:

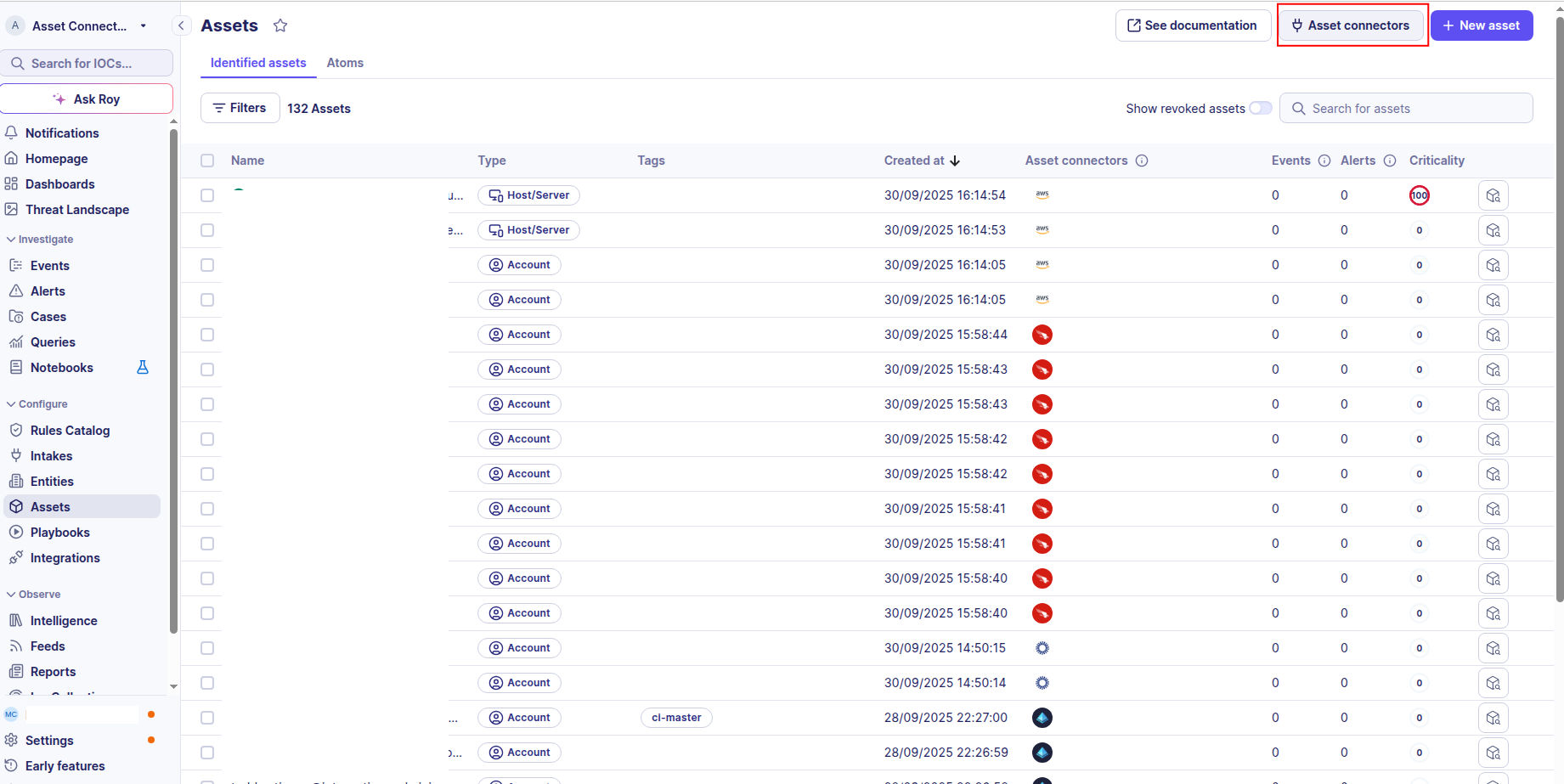

  1. Click the Asset connectors button to create a new connector.

    Asset connectors button highlighted

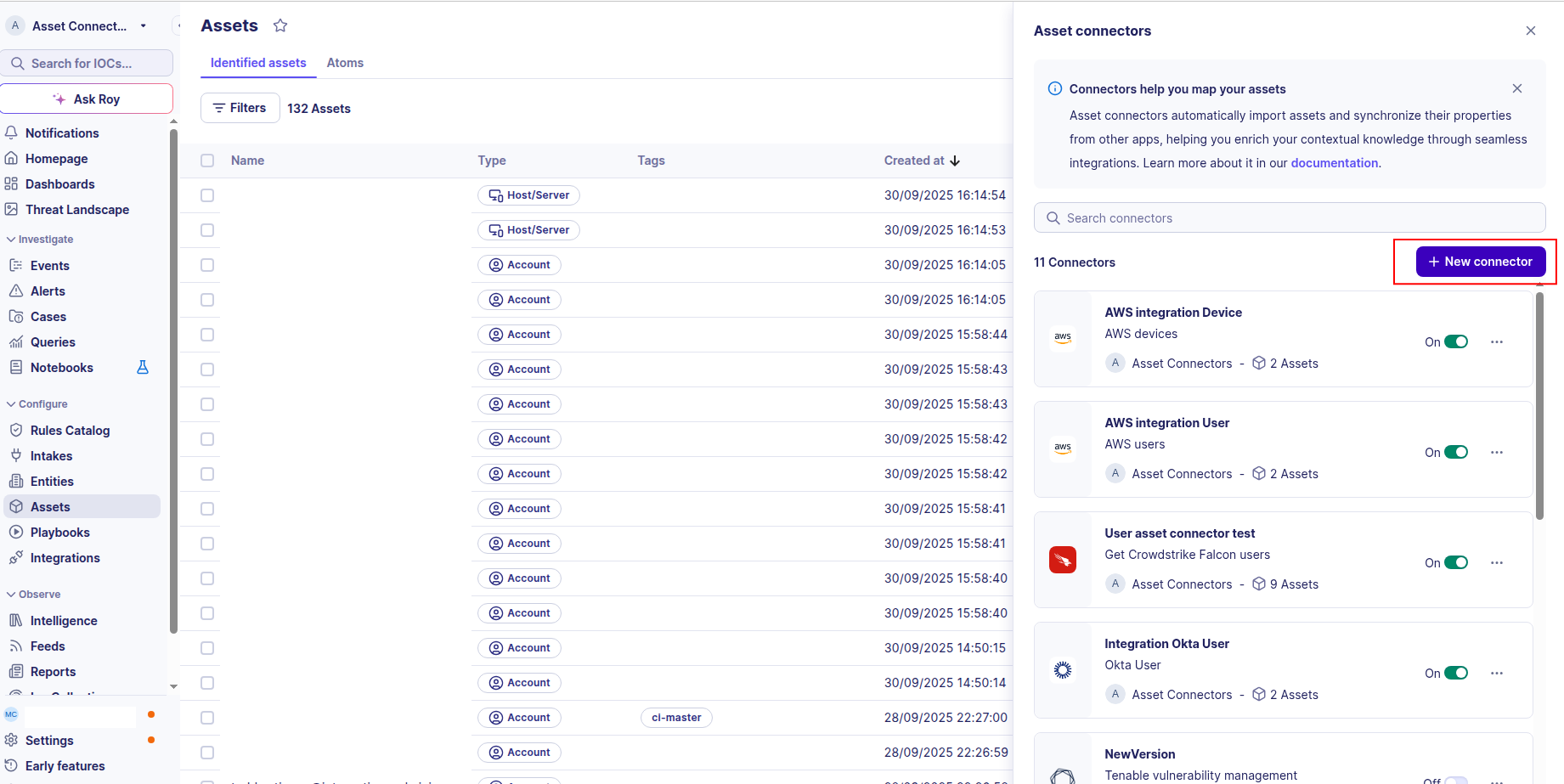

  2. Click the + New connector button.

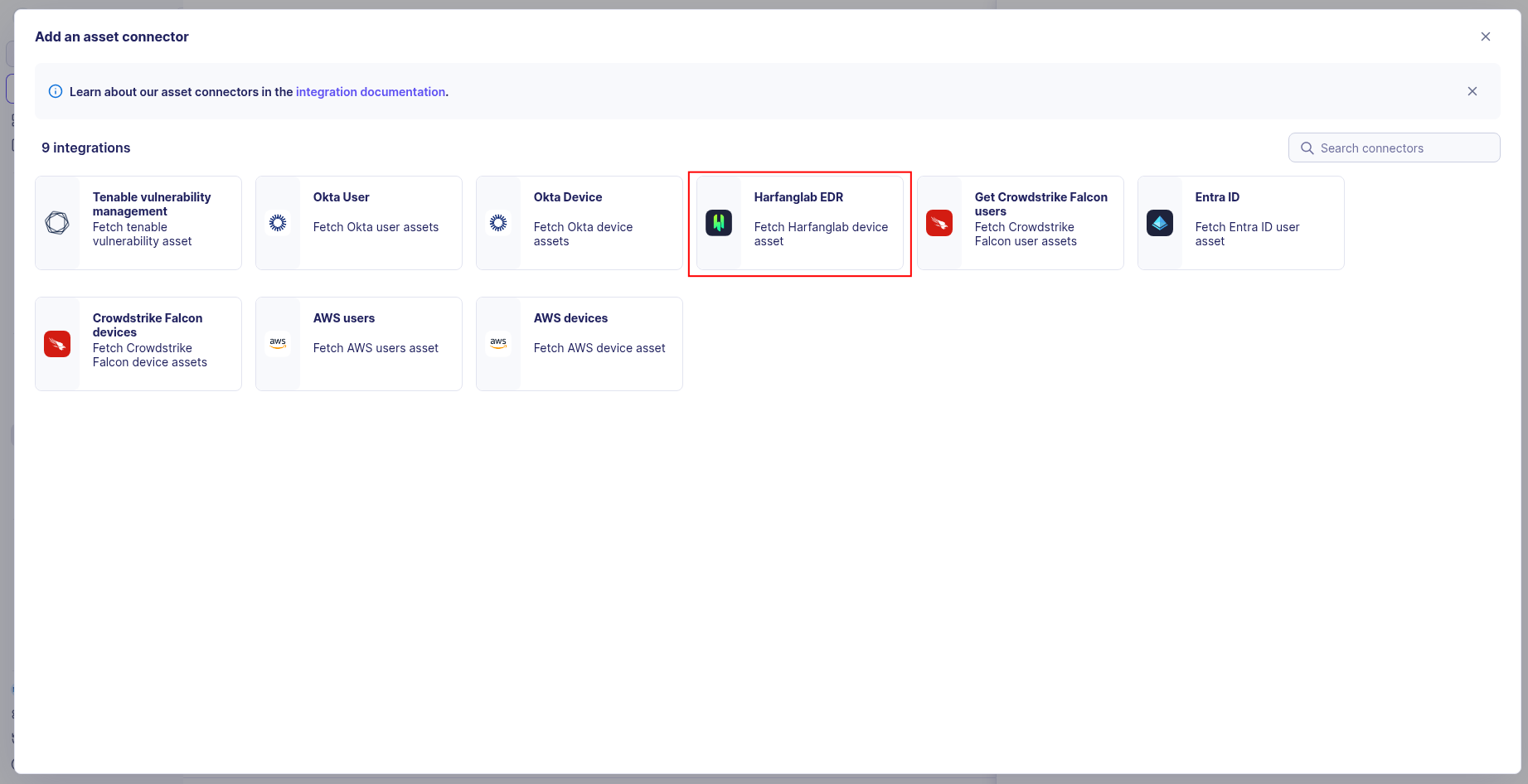

  3. Choose HarfangLab EDR, give it a name, and fill the required fields:

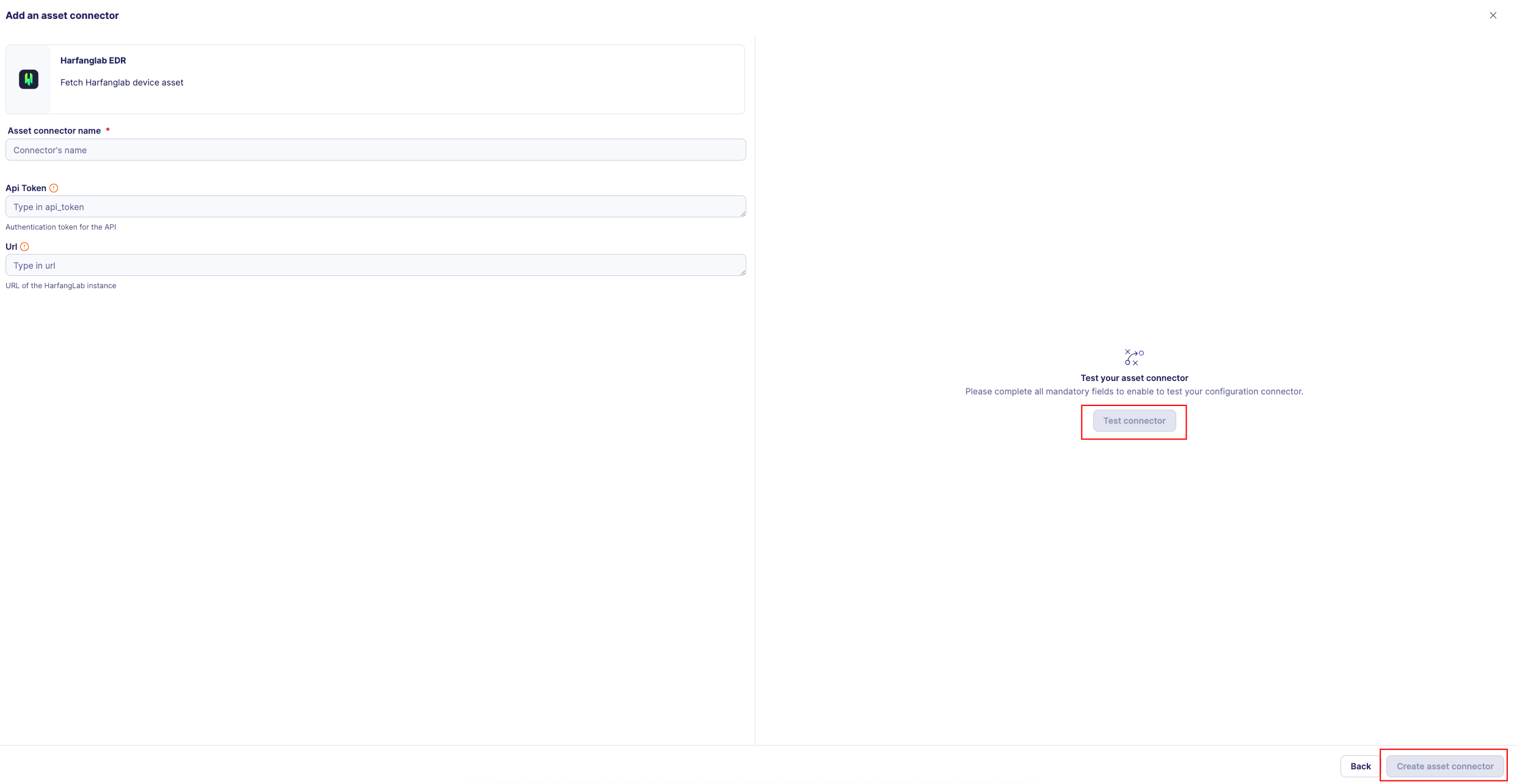

    HarfangLab EDR connector configuration form

  4. Test the connection by clicking the Test connector button.

    Connector test result and Create asset connector button highlighted

  5. Click the Create asset connector button.

Warning

  • Make sure to include your port number in the URL field by appending it to the URL, for example: https://your-harfanglab-instance.com:8443.

OCSF Mapping for Harfanglab Devices

OCSF Class: Device Inventory Info

Class UID: 5001

OCSF Version: 1.6.0

Information Collected

The Harfanglab Devices fetches comprehensive information and transforms it into the OCSF (Open Cybersecurity Schema Framework) format for standardized security monitoring and asset management.

API Response Examples

HarfangLab Device Inventory Sample

Agent data sample for harfanglab api response.

{
        "id": "3891597d-8696-4fc4-a260-b04880bdbd68",
        "group_count": None,
        "groups": [],
        "status": "offline",
        "policy": {
            "id": "eaa79dde-2c4c-4fb8-822b-20a0529ba6db",
            "tenant": None,
            "origin_stack": None,
            "macos_paths_muted_exact": [
                "/Applications/Avast.app/Contents/Backend/utils/com.avast.Antivirus.EndpointSecurity.app/Contents/MacOS/com.avast.Antivirus.EndpointSecurity.",
                "/System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Support/corespotlightd",
            ],
            "macos_paths_muted_prefixes": [
                "/Applications/WithSecure/WithSecure Agent.app/",
                "/usr/libexec/",
            ],
            "macos_paths_muted_globs": [],
            "macos_paths_read_watched_exact": [
                "/private/etc/kcpassword",
                "/System/Library/Sandbox/rootless.conf",
            ],
            "macos_paths_read_watched_prefixes": [
                "/private/var/db/dslocal/nodes/Default/users/",
                "/Library/Keychains/",
                "/Network/Library/Keychains/",
            ],
            "macos_paths_read_watched_globs": [
                "/Users/*/Library/Application Support/Litecoin/wallets/**",
                "/Users/*/.ssh/*",
                "/Users/*/Library/Application Support/Microsoft Edge/*/**",
            ],
            "macos_paths_write_watched_exact": ["/Library/Application Support/com.apple.TCC/TCC.db"],
            "macos_paths_write_watched_prefixes": [
                "/System/Library/LaunchAgents/",
                "/Library/Scripts/",
            ],
            "macos_paths_write_watched_globs": [
                "/Users/*/Library/Preferences/**",
                "/Users/*/Library/LaunchAgents/**",
            ],
            "macos_paths_other_watched_exact": ["/Library/Application Support/com.apple.TCC/TCC.db"],
            "macos_paths_other_watched_prefixes": [
                "/System/Library/LaunchAgents/",
                "/Library/Scripts/",
            ],
            "macos_paths_other_watched_globs": [
                "/Users/*/Documents/**",
                "/private/var/folders/**/NSCreateObjectFileImageFromMemory-*",
            ],
            "windows_read_watched_paths": [
                "*\\PROGRAM FILES*",
                "*\\WINDOWS\\SYSTEM32\\CONFIG\\*",
            ],
            "windows_write_watched_paths": [
                "*\\PROGRAM FILES*",
                "*\\USERS\\DEFAULT\\NTUSER.DAT",
            ],
            "windows_registry_read_whitelist": [
                "HKU\\*\\SOFTWARE\\OPENSSH\\AGENT\\KEYS\\*",
            ],
            "windows_registry_read_blacklist": [],
            "linux_paths_other_watched_globs": [
                "/home/*/*",
                "/home/*/*/*",
                "/root/*",
                "/root/*/*",
                "/tmp/**",
                "/dev/shm/**",
            ],
            "use_driver": True,
            "use_process_block": False,
            "antivirus_policy_name": "GENSECEV_HarfangLab_AV_policy",
            "agent_auto_update": False,
            "agent_auto_forget": False,
            "agent_auto_forget_max_days": 1,
            "antivirus_profile": "d060dd94-fe99-4683-900e-f304e74fe97c",
            "antivirus_profile_name": "GENSECEV_HarfangLab_AV_policy",
            "local_endpoint_cache_size": 10240,
            "name": "GENSECEV_HarfangLab_EDR_policy",
            "description": "Used to automatically generate security events **DO NOT TOUCH**",
            "revision": 2,
            "sleeptime": 60,
            "sleepjitter": 10,
            "telemetry_process_state": "live",
            "telemetry_process_limit": False,
            "telemetry_process_limit_value": 1000,
            "telemetry_network_state": "live",
            "telemetry_network_limit": False,
            "telemetry_network_limit_value": 1000,
            "telemetry_log_state": "live",
            "telemetry_log_limit": False,
            "telemetry_log_limit_value": 1000,
            "telemetry_remotethread_state": "live",
            "telemetry_remotethread_limit": False,
            "telemetry_remotethread_limit_value": 1000,
            "telemetry_driverload_state": "live",
            "telemetry_driverload_limit": False,
            "telemetry_driverload_limit_value": 1000,
            "telemetry_powershell_state": "live",
            "telemetry_powershell_limit": False,
            "telemetry_powershell_limit_value": 1000,
            "telemetry_dns_resolution_state": "live",
            "telemetry_dns_resolution_limit": False,
            "telemetry_dns_resolution_limit_value": 1000,
            "telemetry_authentication_state": "live",
            "telemetry_authentication_limit": False,
            "telemetry_authentication_limit_value": 1000,
            "telemetry_usb_activity_state": "live",
            "telemetry_usb_activity_limit": False,
            "telemetry_usb_activity_limit_value": 1000,
            "telemetry_user_group_state": "live",
            "telemetry_user_group_limit": False,
            "telemetry_user_group_limit_value": 1000,
            "telemetry_registry_state": "on_alert",
            "telemetry_registry_limit": False,
            "telemetry_registry_limit_value": 1000,
            "telemetry_raw_device_access_state": "on_alert",
            "telemetry_raw_device_access_limit": False,
            "telemetry_raw_device_access_limit_value": 1000,
            "telemetry_named_pipe_state": "on_alert",
            "telemetry_named_pipe_limit": False,
            "telemetry_named_pipe_limit_value": 1000,
            "telemetry_raw_socket_creation_state": "on_alert",
            "telemetry_raw_socket_creation_limit": False,
            "telemetry_raw_socket_creation_limit_value": 1000,
            "telemetry_network_listen_state": "on_alert",
            "telemetry_network_listen_limit": False,
            "telemetry_network_listen_limit_value": 1000,
            "telemetry_process_access_state": "on_alert",
            "telemetry_process_access_limit": False,
            "telemetry_process_access_limit_value": 1000,
            "telemetry_process_tamper_state": "on_alert",
            "telemetry_process_tamper_limit": False,
            "telemetry_process_tamper_limit_value": 1000,
            "telemetry_url_request_state": "on_alert",
            "telemetry_url_request_limit": False,
            "telemetry_url_request_limit_value": 1000,
            "telemetry_wmi_event_state": "on_alert",
            "telemetry_wmi_event_limit": False,
            "telemetry_wmi_event_limit_value": 1000,
            "telemetry_file_state": "on_alert",
            "telemetry_file_limit": False,
            "telemetry_file_limit_value": 1000,
            "telemetry_file_download_state": "live",
            "telemetry_file_download_limit": False,
            "telemetry_file_download_limit_value": 1000,
            "telemetry_library_load_state": "on_alert",
            "telemetry_library_load_limit": False,
            "telemetry_library_load_limit_value": 1000,
            "telemetry_dotnet_library_state": "on_alert",
            "telemetry_alerts_limit": False,
            "telemetry_alerts_limit_value": 1000,
            "binary_download_enabled": False,
            "library_download_enabled": False,
            "thread_download_enabled": False,
            "telemetry_on_alert_enabled": False,
            "telemetry_on_alert_pre_alert_event_count": 5000,
            "telemetry_on_alert_post_alert_max_event_count": 5000,
            "telemetry_on_alert_post_alert_max_duration_secs": 600,
            "loglevel": "DEBUG",
            "sigma_mode": 1,
            "ioc_mode": 1,
            "ioc_scan_written_executable": False,
            "ioc_scan_libraries": False,
            "hlai_mode": 1,
            "hlai_skip_signed_ms": True,
            "hlai_skip_signed_others": False,
            "hlai_scan_libraries": True,
            "hlai_written_executable": True,
            "hlai_pdf": True,
            "hlai_minimum_level": "critical",
            "hlai_scripts_mode": 1,
            "hlai_scripts_minimum_level": "critical",
            "hibou_mode": 0,
            "hibou_skip_signed_ms": False,
            "hibou_skip_signed_others": False,
            "hibou_minimum_level": "critical",
            "yara_mode": 1,
            "yara_skip_signed_ms": True,
            "yara_skip_signed_others": False,
            "yara_scan_written_executable": True,
            "yara_scan_libraries_load": True,
            "ransomguard_mode": 1,
            "ransomguard_heuristic_mode": 1,
            "driverblock_mode": 1,
            "sidewatch_mode": 1,
            "use_isolation": True,
            "linux_use_isolation": True,
            "isolation_exclusions_revision": None,
            "windows_self_protection": True,
            "windows_self_protection_feature_hosts": False,
            "windows_self_protection_feature_safe_mode": True,
            "windows_self_protection_feature_firewall": True,
            "linux_self_protection": True,
            "linux_self_protection_feature_hosts": False,
            "audit_killswitch": False,
            "linux_startup_block": False,
            "feature_callback_tampering": True,
            "feature_process_tampering": True,
            "feature_live_process_heuristics": True,
            "feature_windows_filesystem_events": True,
            "feature_dse_tampering_mode": 1,
            "feature_event_stacktrace": True,
            "feature_ppl_antimalware": False,
            "agent_ui_enabled": False,
            "agent_ui_admin_message": None,
            "agent_ui_notification_scope": 2,
            "agent_ui_notification_level": 4,
            "synchronization_status": None,
            "sigma_ruleset": None,
            "yara_ruleset": None,
            "ioc_ruleset": None,
            "firewall_policy": None,
            "fim_policy": None,
            "antivirus_policy": "d060dd94-fe99-4683-900e-f304e74fe97c",
            "vulnerability_policy": None,
        },
        "tenant": None,
        "starttime": "2025-06-11T00:14:58.000000Z",
        "additional_info": {
            "additional_info1": "vagrant",
            "additional_info2": "wks",
            "additional_info3": None,
            "additional_info4": None,
        },
        "subnet": {
            "id": "35064b52-fa8a-4357-b21d-87ab8114add2",
            "gateway_ipaddress": "1.2.3.4",
            "gateway_macaddress": "55-55-00-22-33-22",
            "gateway_oui": None,
            "name": None,
        },
        "telemetry": None,
        "disk_count": 1,
        "encrypted_disk_count": 0,
        "domainname": "TestGROUP",
        "dnsdomainname": None,
        "hostname": "testhostaname1",
        "osmajor": 10,
        "osminor": 0,
        "osproducttype": "Windows 11 Enterprise Evaluation",
        "machine_serial": "0",
        "has_valid_password": True,
        "firstseen": "2025-06-11T00:15:06.454734Z",
        "lastseen": "2025-06-11T00:27:06.693963Z",
        "lastseen_warning": "2025-06-11T00:26:59.279324Z",
        "lastseen_error": "2025-06-11T00:27:29.279324Z",
        "version": "24.12.11-0bca88184713cdbb85eec416705f6a0baa07f518-dirty",
        "bitness": "x64",
        "distroid": None,
        "domain": None,
        "installdate": "2025-06-11 00:12:06+00:00",
        "ipaddress": "1.2.2.5",
        "ipmask": "255.255.255.0",
        "external_ipaddress": None,
        "osbuild": 22631,
        "osid": "00329-20000-00001-AA837",
        "ostype": "windows",
        "osversion": "10.0.22631",
        "producttype": "worktest",
        "servicepack": None,
        "total_memory": 4277866496,
        "cpu_count": 2,
        "cpu_frequency": 3408,
        "avg_cpu": 2.4,
        "avg_memory": 164448665,
        "avg_system_cpu": 14.4,
        "avg_system_memory": 3037852467,
        "avg_av_cpu": 0,
        "avg_av_memory": 80097280,
        "machine_boottime": "2025-06-11T00:13:20Z",
        "antivirus_name": "HarfangLab Antivirus",
        "antivirus_version": "6.3.23.0",
        "antivirus_rules_version": "108237",
        "antivirus_last_update_date": None,
        "antivirus_rules_last_update_date": "2025-06-10T18:04:36Z",
        "isolation_state": False,
        "isolation_policy": False,
        "driver_enabled": True,
        "driver_policy": False,
        "driver_version": "24.12.11",
        "is_ppl_antimalware": True,
        "rollback_version": None,
        "pinned_version": None,
        "task_statuses": None,
        "uninstall_status": 0,
        "update_status": 0,
        "refresh_properties_status": None,
        "windows_groups_last_update": None,
        "windows_users_last_update": None,
        "refresh_quarantine_status": None,
        "quarantine_last_update": None,
        "boot_loop_protection_end_date": None,
        "boot_loop_protection_boot_count": 1,
        "description": None,
        "effective_sigma_revision": 4156,
        "effective_yara_revision": 878,
        "effective_ioc_revision": 49,
        "effective_whitelist_revision": 2717,
        "effective_driver_blocklists_revision": 31,
        "telemetry_last_update": "2025-06-11T00:26:31.974049Z",
    }

Data Mapping Table

The following table shows how source data is mapped to OCSF model fields:

Source Field OCSF Field Path Description Data Type Logic
id device.uid Device unique identifier string Direct mapping of HarfangLab agent unique ID
hostname device.name Device hostname string Direct mapping of hostname
hostname device.hostname Device fully qualified hostname string Direct mapping of hostname
osproducttype device.os.name Operating system name and version string Direct mapping of OS product type (e.g., 'Windows 10 Professional', 'Ubuntu 20.04')
ostype device.os.type Operating system type string Normalize ostype to OCSF OSTypeStr: WINDOWS→'Windows', LINUX→'Linux', MACOS→'macOS', OTHER→'Other', UNKNOWN→'Unknown'
ostype device.os.type_id OCSF operating system type ID integer Map ostype to OCSF OSTypeId: WINDOWS→100, LINUX→200, MACOS→300, OTHER→99, UNKNOWN→0
producttype device.type Device type string Map producttype: 'Workstation'→'Desktop', 'Server'→'Server', 'Laptop'→'Laptop', else→'Other'
producttype device.type_id OCSF device type ID integer Map device type to OCSF DeviceTypeId: Desktop→1, Laptop→2, Server→8, Other→99
ipaddress device.network_interfaces[0].ip Primary network interface IP address string Direct mapping of IP address
subnet.name || 'eth0' device.network_interfaces[0].name Network interface name string Direct mapping of subnet name; default to 'eth0' if missing
subnet.id device.network_interfaces[0].uid Network interface unique identifier string Direct mapping of subnet ID
hostname device.network_interfaces[0].hostname Network interface hostname string Direct mapping of hostname for network interface
static: Wired device.network_interfaces[0].type Network interface type string Default to 'Wired'; can be enhanced with interface type detection logic
static: 1 device.network_interfaces[0].type_id OCSF network interface type ID integer OCSF NetworkInterfaceTypeId for Wired = 1
ipaddress device.ip Device primary IP address string Direct mapping of primary IP address
domainname device.domain Device domain or realm string Direct mapping of domain name
ipmask device.subnet Device subnet mask string Direct mapping of subnet mask/CIDR
policy device.is_managed Whether device is managed by policy boolean If policy object exists and is not empty, is_managed=true; else false
has_valid_password device.is_trusted Whether device has valid credentials/password boolean Direct mapping of password validity; indicates trust status
static: HarfangLab device.vendor_name Device vendor/manufacturer string Always 'HarfangLab' as agent vendor
firstseen device.created_time Device first seen timestamp timestamp Convert ISO 8601 to Unix epoch
machine_boottime device.boot_time Device boot time timestamp Convert ISO 8601 to Unix epoch
lastseen device.updated_time Device last seen timestamp timestamp Convert ISO 8601 to Unix epoch
firstseen time OCSF event timestamp timestamp Convert ISO 8601 to Unix epoch; use for OCSF event timestamp
description || producttype + ' - ' + osproducttype device.desc Device description string Use description if provided; fallback to ' - ' (e.g., 'Workstation - Windows 10')
static: HarfangLab EDR metadata.product.name Source product name string Always 'HarfangLab EDR'
static: 24.12 metadata.product.version Product version string Fixed HarfangLab product version
static: 1.5.0 metadata.version OCSF schema version string Fixed OCSF schema version
static: 2 activity_id OCSF activity ID integer Always 2 for 'Collect' activity
static: Collect activity_name OCSF activity name string Always 'Collect' for asset inventory
static: Discovery category_name OCSF category name string Always 'Discovery'
static: 5 category_uid OCSF category UID integer Always 5 for Discovery category
static: Device Inventory Info class_name OCSF class name string Always 'Device Inventory Info'
static: 5001 class_uid OCSF class UID integer Always 5001 for Device Inventory Info
computed: 500100 + activity_id type_uid OCSF type UID integer Base 500100 + activity_id (2 = 500102)
computed: class_name + ': ' + activity_name type_name OCSF type name string Concatenate 'Device Inventory Info: Collect'
static: Informational severity Event severity string Always 'Informational' for inventory events
static: 1 severity_id OCSF severity ID integer Always 1 for Informational severity
policy.windows_self_protection_feature_firewall enrichments[0].data.Firewall_status Firewall protection status string Extract firewall status from policy; true→'Enabled', false→'Disabled', null→null
encrypted_disk_count && disk_count enrichments[0].data.Storage_encryption.partitions Storage partition encryption status object Build partition encryption map: for each disk i in range(disk_count), set 'disk_i' to 'Enabled' if i < encrypted_disk_count, else 'Disabled'
static: compliance enrichments[0].name Enrichment object name string Always 'compliance' for enrichment type
static: hygiene enrichments[0].value Enrichment object value string Always 'hygiene' for compliance enrichment

OCSF Model Structure

Device Inventory Info: Collect

Transformed HarfangLab api response to OCSF Device Inventory Info event

{
  "activity_id": 2,
  "activity_name": "Collect",
  "category_name": "Discovery",
  "category_uid": 5,
  "class_name": "Device Inventory Info",
  "class_uid": 5001,
  "type_name": "Device Inventory Info: Collect",
  "type_uid": 500102,
  "severity": "Informational",
  "severity_id": 1,
  "time": 1749316506,
  "metadata": {
    "product": {
      "name": "HarfangLab EDR",
      "version": "24.12.11"
    },
    "version": "1.6.0"
  },
  "device": {
    "uid": "3891597d-8696-4fc4-a260-b04880bdbd68",
    "name": "testhostaname1",
    "hostname": "testhostaname1",
    "type": "Desktop",
    "type_id": 1,
    "vendor_name": "HarfangLab",
    "ip": "1.2.2.5",
    "domain": "TestGROUP",
    "subnet": "255.255.255.0",
    "is_managed": true,
    "is_trusted": true,
    "created_time": 1749316506,
    "boot_time": 1749315200,
    "updated_time": 1749321426,
    "desc": "worktest - Windows 11 Enterprise Evaluation",
    "os": {
      "name": "Windows 11 Enterprise Evaluation",
      "type": "Windows",
      "type_id": 100
    },
    "network_interfaces": [
      {
        "hostname": "testhostaname1",
        "name": "eth0",
        "ip": "1.2.2.5",
        "type": "Wired",
        "type_id": 1,
        "uid": "35064b52-fa8a-4357-b21d-87ab8114add2"
      }
    ]
  }
}
