Broadcom Siteminder

Overview

Siteminder generates access logs directly on the system. Then the data can be sent to a log concentrator.

  • Vendor: Broadcom
  • Supported environment: On Premise
  • Detection based on: Telemetry
  • Supported application or feature: Web proxy, Web logs

Warning

Important note - This format is currently in beta. We highly value your feedback to improve its performance.

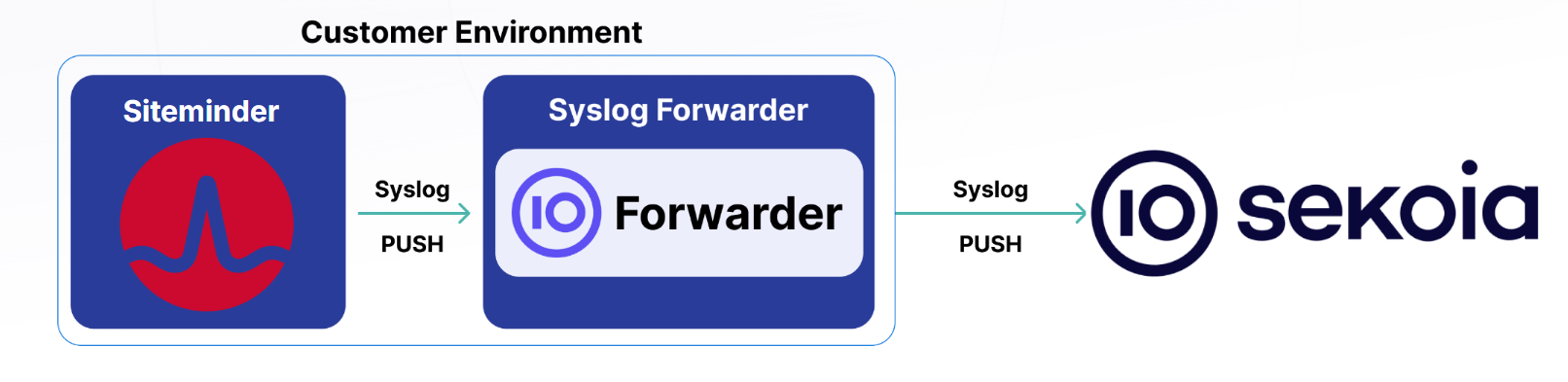

High-Level Architecture Diagram

  • Type of integration: Outbound (PUSH to Sekoia.io)
  • Schema broadcom_siteminder_architecture

Specification

Prerequisites

  • Resource:
    • Self-managed syslog forwarder
  • Network:
    • Outbound traffic allowed
  • Permissions:
    • Root access to the Siteminder machine
    • Root access to the Linux server with the syslog forwarder

Transport Protocol/Method

  • Indirect Syslog

Logs details

  • Supported functionalities: See section Overview
  • Supported type(s) of structure: Syslog
  • Supported verbosity level: Informational

Note

Log levels are based on the taxonomy of RFC5424. Adapt according to the terminology used by the editor.

Step-by-Step Configuration Procedure

  1. Log in to your Siteminder applicance as root.
  2. Find the smaccess.log file on the system :
    find /opt -name smaccess.log 2>/dev/null
  3. Edit /etc/syslog-ng.conf
  4. add a logging source as follows (replace {file_search_result} by the path you found above):
    source s_siteminder_access {file("{file_search_result}");};
  5. add a logging destination as follows :

    Note : if your security policy requires extra-security (ex: tls) between the application and the syslog forwarder, modify the configuration accordingly

    destination d_syslog_forwarder {syslog("<YOUR_SYSLOG_FORWARDER_SERVER_IP>" transport("tcp") port(514));};

  6. add a new "log" row filled with your new source and destination :
    log {source(s_siteminder_accessdestination); destination(d_syslog_forwarder);};
  7. save the file
  8. restart the service
    systemctl restart syslog-ng

Note

If you encounter any issues during the configuration specified in this section "Instructions on the 3rd Party Solution," please do not hesitate to contact your editor. We also welcome any suggestions for improving our documentation to better serve your needs.

Instruction on Sekoia

Configure Your Intake

This section will guide you through creating the intake object in Sekoia, which provides a unique identifier called the "Intake key." The Intake key is essential for later configuration, as it references the Community, Entity, and Parser (Intake Format) used when receiving raw events on Sekoia.

  1. Go to the Sekoia Intake page.
  2. Click on the + New Intake button at the top right of the page.
  3. Search for your Intake by the product name in the search bar.
  4. Give it a Name and associate it with an Entity (and a Community if using multi-tenant mode).
  5. Click on Create.

Note

For more details on how to use the Intake page and to find the Intake key you just created, refer to this documentation.

Configure a forwarder

To forward events using syslog to Sekoia.io, you need to update the syslog header with the intake key you previously created. Here is an example of your message before the forwarder

<%pri%>1 %timestamp:::date-rfc3339% %hostname% %app-name% %procid% LOG RAW_MESSAGE
and after
<%pri%>1 %timestamp:::date-rfc3339% %hostname% %app-name% %procid% LOG [SEKOIA@53288 intake_key=\"YOUR_INTAKE_KEY\"] RAW_MESSAGE

To achieve this you can:

  • Use the Sekoia.io forwarder which is the official supported way to collect data using the syslog protocol in Sekoia.io. In charge of centralizing data coming from many equipments/sources and forwarding them to Sekoia.io with the apporpriated format, it is a prepackaged option. You only have to provide your intake key as parameter.
  • Use your own Syslog service instance. Maybe you already have an intance of one of these components on your side and want to reuse it in order to centralize data before forwarding them to Sekoia.io. When using this mode, you have to configure and maintain your component in order to respect the expected Sekoia.io format.

Warning

Only the Sekoia.io forwarder is officially supported. Other options are documented for reference purposes but do not have official support.

Raw Events Samples

In this section, you will find examples of raw logs as generated natively by the source. These examples are provided to help integrators understand the data format before ingestion into Sekoia.io. It is crucial for setting up the correct parsing stages and ensuring that all relevant information is captured.

AuthAccept HOST_XXX [23/Jul/2025:09:42:41 +0200] "2.2.2.2 uid=toto,ou=Internal,ou=People,o=group" "domain.com GET /affwebservices/redirectjsp/redirect.jsp?RelayState=https%3A%2F%2Fproxy-auth.xxxxgroup.com%2Fmwg-internal%2Fde5fs23hu73ds%2Fplugin%3Ftarget%3DAuth%26reason%3DAuth%26ClientID%3D3664958249%26ttl%3D28800%26url%3DaHR0cHM6Ly9zcHJkYi5lc28taW8uY29tOjQ0Mw%2C%2C%26rnd%3D1753256545.1343803810.NIYDKGKubm1JCVNw4hvLJWZnoE9zPvw2tZ5DCvRz0LA%2C&SAMLRequest=fZLLcpswFIZfxaNFVzYIgQyoxh0CpraD09Zpk7E3HRUrhlZIVBc78dOXkOk0XbTL%2F1z%2FOd%2BZadryjqTW1GLLflqmzeix5UKTIZEAqwSRVDeaCNoyTUxFbtNNSZADSaekkZXkYJRqzZRppMik0LZl6papU1OxL9syAbUxnSau25c%2FPk1ov8oxNeVMH5W0nVPJ1m3Px0kjDFOCcvfA8INGfm1D%2F6DdjttjI94Zqo7MJM9G39C2e6sY1VL80RlvmDCrPPGn0yDGEQriIW4MT1AUQTgoq3hCl1tYLTfT8im%2BVMv1j12DeYUiQ%2B8ju0Ox%2BfD9E9ycx%2BOXNeKQeCH2EZ7iADueH%2FgR9CMPOjerXX79%2Ftp%2Ba711dndzDupTub7fC7mILx9PZ2T2OM9O2wss0zEYFVJVbLhyAh4o1wyMeq%2Fg6yJEMQwL7IfRIvPCqyhOiyDL0ysY5mGBir5Ma8tWQhsqTAIQRHgCwwnyP8OQBIggvAejO6Z0f%2Fw%2B7UAwnz2jI0OfegXz%2Fyzpb4Jg%2Fm9OM%2FfV6PmL%2Bvt55r8A&SMPORTALURL=https%3A%2F%2Fsso-idp.corp.xxxx%2Faffwebservices%2Fpublic%2Fsaml2sso" [idletime=18000;maxtime=18000;authlevel=5;] [0]  [] []

AuthAttempt HOST_XXX [23/Jul/2025:07:01:48 +0200] "10.33.110.2 T0316290@xxxxgroup.com" "domain.com GET /affwebservices/redirectjsp/redirect_unique.jsp?SAMLRequest=nZJfS8MwFMXf%2FRQl72uzrl23sA7GhlBQmU588C3NblkgTWpuotu3N61%2FmAgTfEtubs65v5MskLeqYyvvDvoBXjygi6JjqzSy4aQk3mpmOEpkmreAzAm2W93esDSmrLPGGWEUuao2JcG0ridZPs%2Fq%2BVhkKWTjWV7TIuXTYp7ls6JIm3AynQpKoiewKI0uSZAhUYXoodLouHahRNN8RItROnmkOaOUZbNnEm3CaFJzN9w6ONchSxJEM5L7LhbGdrE7cAWY8KZ5gxrBvkoRtp2vlRRJT5OGdhJdGytgAC5JwxVC77%2FliPIVvisrDAK919po9C3Y3YdepfdwLMmMLK8WvSQbRrdnkV1OjH%2FpkqU7IJ72XggvWjru4rCKpW4s%2FwRZJGcGn3YduwuS1WZrAtPpPy%2FV47fcXe7uK3I%2FaoZW5izXKEE7Eu22vf%2B950o2EmxJ%2FoIISSpl3tYWuAvpOuuBLD%2FIfrIEwOT3X1y%2BAw%3D%3D&RelayState=s2bb34594b91c42e4185b072a679458772fb9166c0&SMPORTALURL=https%3A%2F%2Fsso-idp.corp.xxxx%2Faffwebservices%2Fpublic%2Fsaml2sso" [] [0]  [] []

AuthLogout HOST_XXX [23/Jul/2025:09:41:19 +0200] "2.2.2.2 uid=toto,ou=Internal,ou=People,o=group" "HOST_YYY  " [] [41]  [] []

AuthReject HOST_XXX [23/Jul/2025:09:36:18 +0200] "3.3.3.3 tata" "domain.com GET /affwebservices/redirectjsp/redirect_unique.jsp?SAMLRequest=fZJRS8MwFIX%2FSsl7mrR1nQtdYWwIBRVR8cG3NL3dAm1Sc1On%2F960RUEGe73ck3O%2Bc1Og7LtB7EZ%2FMs%2FwMQL6qDpsiW5onq%2FyRGYp5Snn9IbzDd20m5Q2G6hXdZ4quc5I9AYOtTVbksacRBXiCJVBL40PI56uKF%2FTNHvla5Hlgt%2FGeZ68k%2BgQfLSRflaevB9QMIZoqW6G2J9kB3h0dhxiZXsm2%2FYMNYL71AqQDWPdacWm4GmQkGhvDcLkNzojrESNwsgeUHglXnYP9yJEE2pZEqPBAZRuNTQkurNOwcy%2BJd6NQKKvvjMo5lKuvzc4662yHSmLGdot0usiiYFigiblL3Rnj9rEgeMSu2mR%2FVGHeOgLtniVxXK2x%2BBQHZ5s6ON7gunllRaSOJkn4bTtvPq%2Fi13X2fPegfTwWwYrC3b5P8of&RelayState=c9fc2739-6a5b-436a-90e4-aca86ee9a636&SMPORTALURL=https%3A%2F%2Fsso-idp.xxxxgroup.com%2Faffwebservices%2Fpublic%2Fsaml2sso&SAMLTRANSACTIONID=529c8b77-146ba9a3-74ecf707-0641d84a-9afd1ab" [] [0] Invalid credentials [] []

AzAccept HOST_XXX [23/Jul/2025:09:42:49 +0200] "2.2.2.2 uid=toto,ou=Internal,ou=People,o=group"  "domain.com PUT /BFC5SAISIE/api/v1/application/session/renew" [000000000000000000000000339e210a-bd76-68809279-da7f4700-0a1e3005fa49] [0]  [] []

AzReject HOST_XXX [23/Jul/2025:09:41:34 +0200] "2.2.2.2 uid=toto,ou=Internal,ou=People,o=group" "finance.corp.xxxx_agent DELETE /BFC5CONSO/api/v1/user/killsessions" [000000000000000000000000329e210a-cdf8-6880922e-e4ff9700-14d51f4008be] [0]  [] []

ValidateAccept HOST_XXX [23/Jul/2025:09:42:50 +0200] "2.2.2.2 uid=toto,ou=Internal,ou=People,o=group" "domain.com POST /otdsws/rb_dc719c57-85e7-499c-9886-ef5d0d8299d7?type=js3&sn=v_4_srv_10_sn_C6CA31A6988BF09671ADE5FF4D2E1748_perc_100000_ol_0_mul_1_app-3A3b3e336b48aebb25_1&svrid=10&flavor=post&vi=ALLPGLGCBVPLHPHLRUCHHALDSUOFBADW-0&modifiedSince=1753116005271&bp=3&app=3b3e336b48aebb25&crc=3525654176&en=ql84hk9p&end=1" [idletime=18000;maxtime=18000;authlevel=5;] [0]  [] []

Detection section

The following section provides information for those who wish to learn more about the detection capabilities enabled by collecting this intake. It includes details about the built-in rule catalog, event categories, and ECS fields extracted from raw events. This is essential for users aiming to create custom detection rules, perform hunting activities, or pivot in the events page.

Event Categories

The following table lists the data source offered by this integration.

Data Source Description
Web logs collect network activities from source

In details, the following table denotes the type of events produced by this integration.

Name Values
Kind event
Category ['authentication'], ['web']
Type ``

Transformed Events Samples after Ingestion

This section demonstrates how the raw logs will be transformed by our parsers. It shows the extracted fields that will be available for use in the built-in detection rules and hunting activities in the events page. Understanding these transformations is essential for analysts to create effective detection mechanisms with custom detection rules and to leverage the full potential of the collected data.

{
    "message": "AuthAccept HOST_XXX [23/Jul/2025:09:42:41 +0200] \"2.2.2.2 uid=toto,ou=Internal,ou=People,o=group\" \"domain.com GET /affwebservices/redirectjsp/redirect.jsp?RelayState=https%3A%2F%2Fproxy-auth.xxxxgroup.com%2Fmwg-internal%2Fde5fs23hu73ds%2Fplugin%3Ftarget%3DAuth%26reason%3DAuth%26ClientID%3D3664958249%26ttl%3D28800%26url%3DaHR0cHM6Ly9zcHJkYi5lc28taW8uY29tOjQ0Mw%2C%2C%26rnd%3D1753256545.1343803810.NIYDKGKubm1JCVNw4hvLJWZnoE9zPvw2tZ5DCvRz0LA%2C&SAMLRequest=fZLLcpswFIZfxaNFVzYIgQyoxh0CpraD09Zpk7E3HRUrhlZIVBc78dOXkOk0XbTL%2F1z%2FOd%2BZadryjqTW1GLLflqmzeix5UKTIZEAqwSRVDeaCNoyTUxFbtNNSZADSaekkZXkYJRqzZRppMik0LZl6papU1OxL9syAbUxnSau25c%2FPk1ov8oxNeVMH5W0nVPJ1m3Px0kjDFOCcvfA8INGfm1D%2F6DdjttjI94Zqo7MJM9G39C2e6sY1VL80RlvmDCrPPGn0yDGEQriIW4MT1AUQTgoq3hCl1tYLTfT8im%2BVMv1j12DeYUiQ%2B8ju0Ox%2BfD9E9ycx%2BOXNeKQeCH2EZ7iADueH%2FgR9CMPOjerXX79%2Ftp%2Ba711dndzDupTub7fC7mILx9PZ2T2OM9O2wss0zEYFVJVbLhyAh4o1wyMeq%2Fg6yJEMQwL7IfRIvPCqyhOiyDL0ysY5mGBir5Ma8tWQhsqTAIQRHgCwwnyP8OQBIggvAejO6Z0f%2Fw%2B7UAwnz2jI0OfegXz%2Fyzpb4Jg%2Fm9OM%2FfV6PmL%2Bvt55r8A&SMPORTALURL=https%3A%2F%2Fsso-idp.corp.xxxx%2Faffwebservices%2Fpublic%2Fsaml2sso\" [idletime=18000;maxtime=18000;authlevel=5;] [0]  [] []",
    "event": {
        "action": "AuthAccept",
        "category": [
            "authentication"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "outcome": "success",
        "reason": "Sm_Api_Reason_None",
        "type": [
            "allowed",
            "start"
        ]
    },
    "@timestamp": "2025-07-23T07:42:41Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "domain.com"
            },
            "authlevel": "5",
            "idle": "18000",
            "maxtime": "18000",
            "transaction": {
                "id": "idletime=18000;maxtime=18000;authlevel=5;"
            }
        }
    },
    "client": {
        "address": "2.2.2.2",
        "ip": "2.2.2.2",
        "user": {
            "domain": "ou=Internal,ou=People,o=group",
            "name": "toto"
        }
    },
    "http": {
        "request": {
            "method": "GET"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "2.2.2.2"
        ],
        "user": [
            "toto"
        ]
    },
    "url": {
        "path": "/affwebservices/redirectjsp/redirect.jsp?RelayState=https%3A%2F%2Fproxy-auth.xxxxgroup.com%2Fmwg-internal%2Fde5fs23hu73ds%2Fplugin%3Ftarget%3DAuth%26reason%3DAuth%26ClientID%3D3664958249%26ttl%3D28800%26url%3DaHR0cHM6Ly9zcHJkYi5lc28taW8uY29tOjQ0Mw%2C%2C%26rnd%3D1753256545.1343803810.NIYDKGKubm1JCVNw4hvLJWZnoE9zPvw2tZ5DCvRz0LA%2C&SAMLRequest=fZLLcpswFIZfxaNFVzYIgQyoxh0CpraD09Zpk7E3HRUrhlZIVBc78dOXkOk0XbTL%2F1z%2FOd%2BZadryjqTW1GLLflqmzeix5UKTIZEAqwSRVDeaCNoyTUxFbtNNSZADSaekkZXkYJRqzZRppMik0LZl6papU1OxL9syAbUxnSau25c%2FPk1ov8oxNeVMH5W0nVPJ1m3Px0kjDFOCcvfA8INGfm1D%2F6DdjttjI94Zqo7MJM9G39C2e6sY1VL80RlvmDCrPPGn0yDGEQriIW4MT1AUQTgoq3hCl1tYLTfT8im%2BVMv1j12DeYUiQ%2B8ju0Ox%2BfD9E9ycx%2BOXNeKQeCH2EZ7iADueH%2FgR9CMPOjerXX79%2Ftp%2Ba711dndzDupTub7fC7mILx9PZ2T2OM9O2wss0zEYFVJVbLhyAh4o1wyMeq%2Fg6yJEMQwL7IfRIvPCqyhOiyDL0ysY5mGBir5Ma8tWQhsqTAIQRHgCwwnyP8OQBIggvAejO6Z0f%2Fw%2B7UAwnz2jI0OfegXz%2Fyzpb4Jg%2Fm9OM%2FfV6PmL%2Bvt55r8A&SMPORTALURL=https%3A%2F%2Fsso-idp.corp.xxxx%2Faffwebservices%2Fpublic%2Fsaml2sso"
    }
}

{
    "message": "AuthAttempt HOST_XXX [23/Jul/2025:07:01:48 +0200] \"10.33.110.2 T0316290@xxxxgroup.com\" \"domain.com GET /affwebservices/redirectjsp/redirect_unique.jsp?SAMLRequest=nZJfS8MwFMXf%2FRQl72uzrl23sA7GhlBQmU588C3NblkgTWpuotu3N61%2FmAgTfEtubs65v5MskLeqYyvvDvoBXjygi6JjqzSy4aQk3mpmOEpkmreAzAm2W93esDSmrLPGGWEUuao2JcG0ridZPs%2Fq%2BVhkKWTjWV7TIuXTYp7ls6JIm3AynQpKoiewKI0uSZAhUYXoodLouHahRNN8RItROnmkOaOUZbNnEm3CaFJzN9w6ONchSxJEM5L7LhbGdrE7cAWY8KZ5gxrBvkoRtp2vlRRJT5OGdhJdGytgAC5JwxVC77%2FliPIVvisrDAK919po9C3Y3YdepfdwLMmMLK8WvSQbRrdnkV1OjH%2FpkqU7IJ72XggvWjru4rCKpW4s%2FwRZJGcGn3YduwuS1WZrAtPpPy%2FV47fcXe7uK3I%2FaoZW5izXKEE7Eu22vf%2B950o2EmxJ%2FoIISSpl3tYWuAvpOuuBLD%2FIfrIEwOT3X1y%2BAw%3D%3D&RelayState=s2bb34594b91c42e4185b072a679458772fb9166c0&SMPORTALURL=https%3A%2F%2Fsso-idp.corp.xxxx%2Faffwebservices%2Fpublic%2Fsaml2sso\" [] [0]  [] []",
    "event": {
        "action": "AuthAttempt",
        "category": [
            "authentication"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "outcome": "unknown",
        "reason": "Sm_Api_Reason_None"
    },
    "@timestamp": "2025-07-23T05:01:48Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "domain.com"
            }
        }
    },
    "client": {
        "address": "10.33.110.2",
        "ip": "10.33.110.2",
        "user": {
            "domain": "xxxxgroup.com",
            "name": "T0316290"
        }
    },
    "http": {
        "request": {
            "method": "GET"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "10.33.110.2"
        ],
        "user": [
            "T0316290"
        ]
    },
    "url": {
        "path": "/affwebservices/redirectjsp/redirect_unique.jsp?SAMLRequest=nZJfS8MwFMXf%2FRQl72uzrl23sA7GhlBQmU588C3NblkgTWpuotu3N61%2FmAgTfEtubs65v5MskLeqYyvvDvoBXjygi6JjqzSy4aQk3mpmOEpkmreAzAm2W93esDSmrLPGGWEUuao2JcG0ridZPs%2Fq%2BVhkKWTjWV7TIuXTYp7ls6JIm3AynQpKoiewKI0uSZAhUYXoodLouHahRNN8RItROnmkOaOUZbNnEm3CaFJzN9w6ONchSxJEM5L7LhbGdrE7cAWY8KZ5gxrBvkoRtp2vlRRJT5OGdhJdGytgAC5JwxVC77%2FliPIVvisrDAK919po9C3Y3YdepfdwLMmMLK8WvSQbRrdnkV1OjH%2FpkqU7IJ72XggvWjru4rCKpW4s%2FwRZJGcGn3YduwuS1WZrAtPpPy%2FV47fcXe7uK3I%2FaoZW5izXKEE7Eu22vf%2B950o2EmxJ%2FoIISSpl3tYWuAvpOuuBLD%2FIfrIEwOT3X1y%2BAw%3D%3D&RelayState=s2bb34594b91c42e4185b072a679458772fb9166c0&SMPORTALURL=https%3A%2F%2Fsso-idp.corp.xxxx%2Faffwebservices%2Fpublic%2Fsaml2sso"
    }
}

{
    "message": "AuthLogout HOST_XXX [23/Jul/2025:09:41:19 +0200] \"2.2.2.2 uid=toto,ou=Internal,ou=People,o=group\" \"HOST_YYY  \" [] [41]  [] []",
    "event": {
        "action": "AuthLogout",
        "category": [
            "authentication"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "outcome": "success",
        "reason": "Sm_Api_Reason_UserLogout",
        "type": [
            "end"
        ]
    },
    "@timestamp": "2025-07-23T07:41:19Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "HOST_YYY"
            }
        }
    },
    "client": {
        "address": "2.2.2.2",
        "ip": "2.2.2.2",
        "user": {
            "domain": "ou=Internal,ou=People,o=group",
            "name": "toto"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "2.2.2.2"
        ],
        "user": [
            "toto"
        ]
    }
}

{
    "message": "AuthReject HOST_XXX [23/Jul/2025:09:36:18 +0200] \"3.3.3.3 tata\" \"domain.com GET /affwebservices/redirectjsp/redirect_unique.jsp?SAMLRequest=fZJRS8MwFIX%2FSsl7mrR1nQtdYWwIBRVR8cG3NL3dAm1Sc1On%2F960RUEGe73ck3O%2Bc1Og7LtB7EZ%2FMs%2FwMQL6qDpsiW5onq%2FyRGYp5Snn9IbzDd20m5Q2G6hXdZ4quc5I9AYOtTVbksacRBXiCJVBL40PI56uKF%2FTNHvla5Hlgt%2FGeZ68k%2BgQfLSRflaevB9QMIZoqW6G2J9kB3h0dhxiZXsm2%2FYMNYL71AqQDWPdacWm4GmQkGhvDcLkNzojrESNwsgeUHglXnYP9yJEE2pZEqPBAZRuNTQkurNOwcy%2BJd6NQKKvvjMo5lKuvzc4662yHSmLGdot0usiiYFigiblL3Rnj9rEgeMSu2mR%2FVGHeOgLtniVxXK2x%2BBQHZ5s6ON7gunllRaSOJkn4bTtvPq%2Fi13X2fPegfTwWwYrC3b5P8of&RelayState=c9fc2739-6a5b-436a-90e4-aca86ee9a636&SMPORTALURL=https%3A%2F%2Fsso-idp.xxxxgroup.com%2Faffwebservices%2Fpublic%2Fsaml2sso&SAMLTRANSACTIONID=529c8b77-146ba9a3-74ecf707-0641d84a-9afd1ab\" [] [0] Invalid credentials [] []",
    "event": {
        "action": "AuthReject",
        "category": [
            "authentication"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "message": "Invalid credentials ",
        "outcome": "failure",
        "reason": "Sm_Api_Reason_None",
        "type": [
            "start"
        ]
    },
    "@timestamp": "2025-07-23T07:36:18Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "domain.com"
            }
        }
    },
    "client": {
        "address": "3.3.3.3",
        "ip": "3.3.3.3",
        "user": {
            "name": "tata"
        }
    },
    "http": {
        "request": {
            "method": "GET"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "3.3.3.3"
        ],
        "user": [
            "tata"
        ]
    },
    "url": {
        "path": "/affwebservices/redirectjsp/redirect_unique.jsp?SAMLRequest=fZJRS8MwFIX%2FSsl7mrR1nQtdYWwIBRVR8cG3NL3dAm1Sc1On%2F960RUEGe73ck3O%2Bc1Og7LtB7EZ%2FMs%2FwMQL6qDpsiW5onq%2FyRGYp5Snn9IbzDd20m5Q2G6hXdZ4quc5I9AYOtTVbksacRBXiCJVBL40PI56uKF%2FTNHvla5Hlgt%2FGeZ68k%2BgQfLSRflaevB9QMIZoqW6G2J9kB3h0dhxiZXsm2%2FYMNYL71AqQDWPdacWm4GmQkGhvDcLkNzojrESNwsgeUHglXnYP9yJEE2pZEqPBAZRuNTQkurNOwcy%2BJd6NQKKvvjMo5lKuvzc4662yHSmLGdot0usiiYFigiblL3Rnj9rEgeMSu2mR%2FVGHeOgLtniVxXK2x%2BBQHZ5s6ON7gunllRaSOJkn4bTtvPq%2Fi13X2fPegfTwWwYrC3b5P8of&RelayState=c9fc2739-6a5b-436a-90e4-aca86ee9a636&SMPORTALURL=https%3A%2F%2Fsso-idp.xxxxgroup.com%2Faffwebservices%2Fpublic%2Fsaml2sso&SAMLTRANSACTIONID=529c8b77-146ba9a3-74ecf707-0641d84a-9afd1ab"
    }
}

{
    "message": "AzAccept HOST_XXX [23/Jul/2025:09:42:49 +0200] \"2.2.2.2 uid=toto,ou=Internal,ou=People,o=group\"  \"domain.com PUT /BFC5SAISIE/api/v1/application/session/renew\" [000000000000000000000000339e210a-bd76-68809279-da7f4700-0a1e3005fa49] [0]  [] []",
    "event": {
        "action": "AzAccept",
        "category": [
            "web"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "outcome": "success",
        "reason": "Sm_Api_Reason_None",
        "type": [
            "allowed",
            "change"
        ]
    },
    "@timestamp": "2025-07-23T07:42:49Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "domain.com"
            },
            "transaction": {
                "id": "000000000000000000000000339e210a-bd76-68809279-da7f4700-0a1e3005fa49"
            }
        }
    },
    "client": {
        "address": "2.2.2.2",
        "ip": "2.2.2.2",
        "user": {
            "domain": "ou=Internal,ou=People,o=group",
            "name": "toto"
        }
    },
    "http": {
        "request": {
            "method": "PUT"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "2.2.2.2"
        ],
        "user": [
            "toto"
        ]
    },
    "url": {
        "path": "/BFC5SAISIE/api/v1/application/session/renew"
    }
}

{
    "message": "AzReject HOST_XXX [23/Jul/2025:09:41:34 +0200] \"2.2.2.2 uid=toto,ou=Internal,ou=People,o=group\" \"finance.corp.xxxx_agent DELETE /BFC5CONSO/api/v1/user/killsessions\" [000000000000000000000000329e210a-cdf8-6880922e-e4ff9700-14d51f4008be] [0]  [] []",
    "event": {
        "action": "AzReject",
        "category": [
            "web"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "outcome": "failure",
        "reason": "Sm_Api_Reason_None",
        "type": [
            "deletion"
        ]
    },
    "@timestamp": "2025-07-23T07:41:34Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "finance.corp.xxxx_agent"
            },
            "transaction": {
                "id": "000000000000000000000000329e210a-cdf8-6880922e-e4ff9700-14d51f4008be"
            }
        }
    },
    "client": {
        "address": "2.2.2.2",
        "ip": "2.2.2.2",
        "user": {
            "domain": "ou=Internal,ou=People,o=group",
            "name": "toto"
        }
    },
    "http": {
        "request": {
            "method": "DELETE"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "2.2.2.2"
        ],
        "user": [
            "toto"
        ]
    },
    "url": {
        "path": "/BFC5CONSO/api/v1/user/killsessions"
    }
}

{
    "message": "ValidateAccept HOST_XXX [23/Jul/2025:09:42:50 +0200] \"2.2.2.2 uid=toto,ou=Internal,ou=People,o=group\" \"domain.com POST /otdsws/rb_dc719c57-85e7-499c-9886-ef5d0d8299d7?type=js3&sn=v_4_srv_10_sn_C6CA31A6988BF09671ADE5FF4D2E1748_perc_100000_ol_0_mul_1_app-3A3b3e336b48aebb25_1&svrid=10&flavor=post&vi=ALLPGLGCBVPLHPHLRUCHHALDSUOFBADW-0&modifiedSince=1753116005271&bp=3&app=3b3e336b48aebb25&crc=3525654176&en=ql84hk9p&end=1\" [idletime=18000;maxtime=18000;authlevel=5;] [0]  [] []",
    "event": {
        "action": "ValidateAccept",
        "category": [
            "web"
        ],
        "dataset": "smaccess",
        "kind": "event",
        "outcome": "success",
        "reason": "Sm_Api_Reason_None",
        "type": [
            "allowed",
            "creation"
        ]
    },
    "@timestamp": "2025-07-23T07:42:50Z",
    "broadcom": {
        "siteminder": {
            "agent": {
                "name": "domain.com"
            },
            "authlevel": "5",
            "idle": "18000",
            "maxtime": "18000",
            "transaction": {
                "id": "idletime=18000;maxtime=18000;authlevel=5;"
            }
        }
    },
    "client": {
        "address": "2.2.2.2",
        "ip": "2.2.2.2",
        "user": {
            "domain": "ou=Internal,ou=People,o=group",
            "name": "toto"
        }
    },
    "http": {
        "request": {
            "method": "POST"
        }
    },
    "observer": {
        "hostname": "HOST_XXX",
        "product": "Siteminder",
        "type": "uam",
        "vendor": "Broadcom "
    },
    "related": {
        "hosts": [
            "HOST_XXX"
        ],
        "ip": [
            "2.2.2.2"
        ],
        "user": [
            "toto"
        ]
    },
    "url": {
        "path": "/otdsws/rb_dc719c57-85e7-499c-9886-ef5d0d8299d7?type=js3&sn=v_4_srv_10_sn_C6CA31A6988BF09671ADE5FF4D2E1748_perc_100000_ol_0_mul_1_app-3A3b3e336b48aebb25_1&svrid=10&flavor=post&vi=ALLPGLGCBVPLHPHLRUCHHALDSUOFBADW-0&modifiedSince=1753116005271&bp=3&app=3b3e336b48aebb25&crc=3525654176&en=ql84hk9p&end=1"
    }
}

Extracted Fields

The following table lists the fields that are extracted, normalized under the ECS format, analyzed and indexed by the parser. It should be noted that infered fields are not listed.

Name Type Description
@timestamp date Date/time when the event originated.
broadcom.siteminder.agent.name keyword The name of the agent
broadcom.siteminder.authlevel keyword Authentication level
broadcom.siteminder.idle keyword IDLE time in minutes
broadcom.siteminder.maxtime keyword Maximum time
broadcom.siteminder.transaction.id keyword A string that contains idletime=.
client.ip ip IP address of the client.
client.user.domain keyword Name of the directory the user is a member of.
client.user.name keyword Short name or login of the user.
event.action keyword The action captured by the event.
event.category keyword Event category. The second categorization field in the hierarchy.
event.dataset keyword Name of the dataset.
event.kind keyword The kind of the event. The highest categorization field in the hierarchy.
event.outcome keyword The outcome of the event. The lowest level categorization field in the hierarchy.
event.reason keyword Reason why this event happened, according to the source
event.type keyword Event type. The third categorization field in the hierarchy.
http.request.method keyword HTTP request method.
observer.hostname keyword Hostname of the observer.
observer.product keyword The product name of the observer.
observer.type keyword The type of the observer the data is coming from.
observer.vendor keyword Vendor name of the observer.
url.path wildcard Path of the request, such as "/search".

For more information on the Intake Format, please find the code of the Parser, Smart Descriptions, and Supported Events here.
