AWS EC2

Overview

Amazon Elastic Compute Cloud (EC2) is a web service that provides secure, resizable compute capacity in the cloud. It is designed to make web-scale cloud computing easier for developers by providing a simple web service interface that allows you to obtain and configure capacity with minimal friction.

  • Vendor: Amazon
  • Product: AWS EC2
  • Supported environment: Cloud

Configure

Sekoia.io supports two authentication methods to access your AWS resources. Choose the one that best fits your security requirements:

Method Summary When to use
IAM Role with OIDC (Recommended) Sekoia.io assumes an IAM Role using short-lived credentials issued via OpenID Connect (OIDC). No long-lived access keys are stored. Preferred for new setups and security-conscious environments
Static Access Keys A dedicated IAM user authenticates with a static access key and secret. Existing setups or environments where OIDC federation is not available

Step 1 — Register Sekoia.io as an OIDC Identity Provider in AWS IAM

  1. Open the IAM console and navigate to Identity providers.
  2. Click Add provider and select OpenID Connect.
  3. Fill in the form:
    • Provider URL: https://app.sekoia.io/api/v1/symphony/oidc
    • Audience: sts.amazonaws.com
  4. Click Add provider to confirm.

Once created, note the Provider ARN (e.g. arn:aws:iam::XXXXXXXXXXXX:oidc-provider/app.sekoia.io/api/v1/symphony/oidc).

Step 2 — Create an IAM Role for Sekoia.io

  1. In the IAM console, navigate to Roles and click Create role.
  2. Select Web identity as the trusted entity type.
  3. Choose the app.sekoia.io/api/v1/symphony/oidc identity provider and set the audience to sts.amazonaws.com.

  4. Replace the trust policy with the following, substituting your AWS account ID and community/connector UUIDs:

    {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::XXXXXXXXXXXX:oidc-provider/app.sekoia.io/api/v1/symphony/oidc"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "app.sekoia.io/api/v1/symphony/oidc:aud": "sts.amazonaws.com"
                },
                "StringLike": {
                    "app.sekoia.io/api/v1/symphony/oidc:sub": "community:<COMMUNITY_UUID>:modconf:<MODULE_CONFIGURATION_UUID>"
                }
            }
        }
    ]
}

  5. Attach the permissions from the Required IAM permissions section to the role.

  6. Note the Role ARN (e.g. arn:aws:iam::XXXXXXXXXXXX:role/ROLE_NAME). You will need it when configuring the connector in Sekoia.io.

How to create an IAM user with proper permissions

To connect AWS EC2 to Sekoia.io, you need to create an IAM user with the necessary permissions to access EC2 instances. Follow these steps:

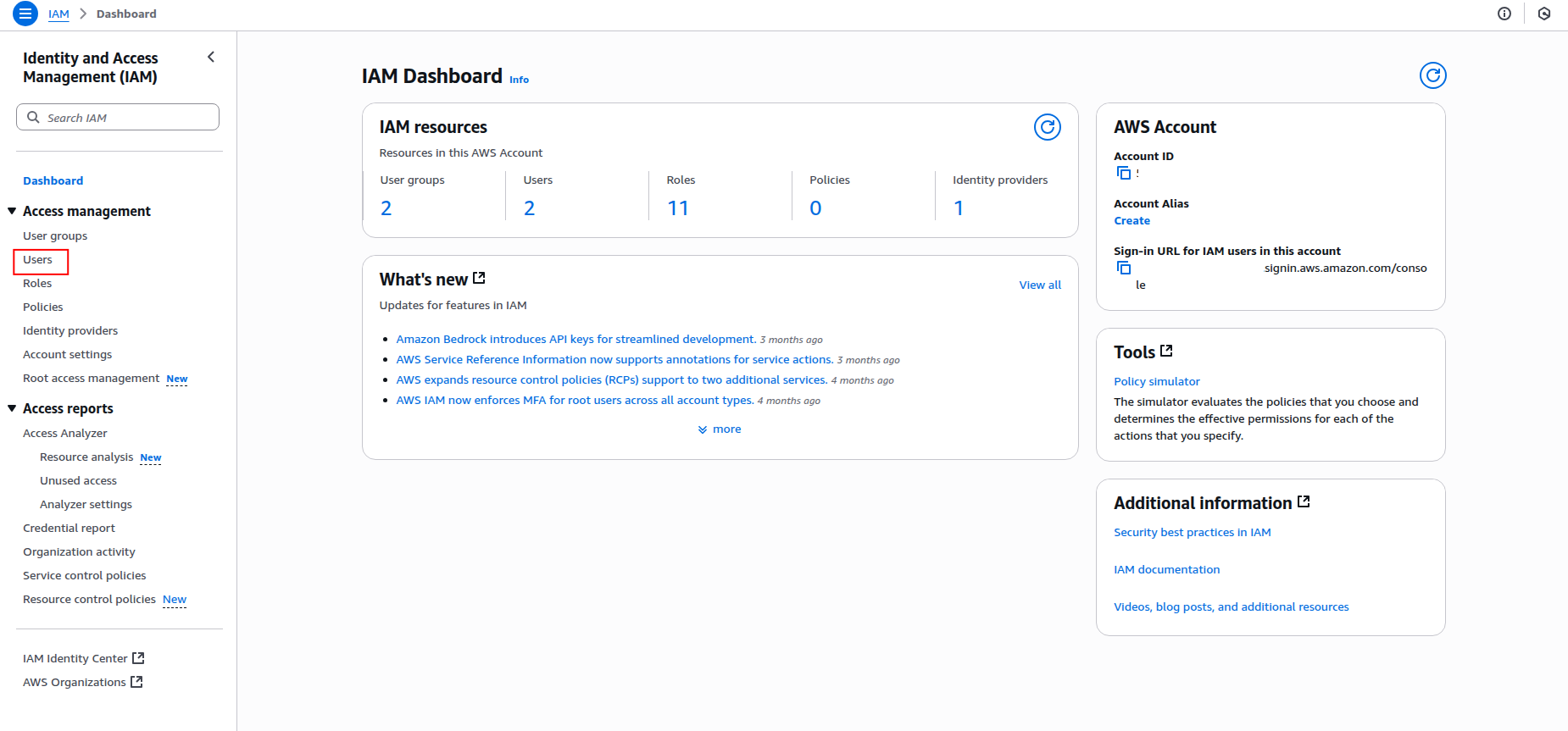

  1. Sign in to the AWS Management Console and navigate to the IAM service.

    AWS Console IAM service selection

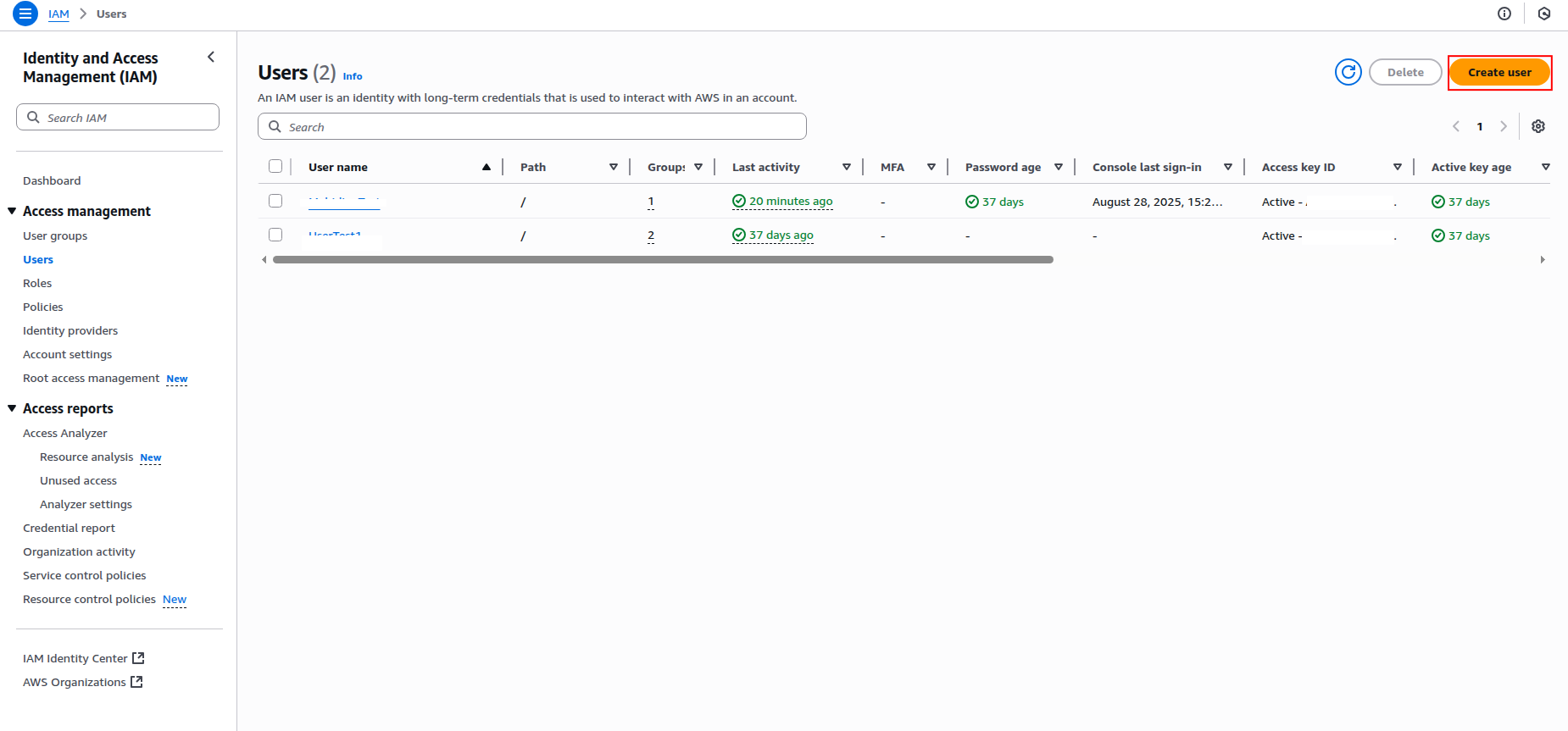

  2. Click Users in the left navigation pane, then click Create user.

    IAM Users page with Create user button highlighted

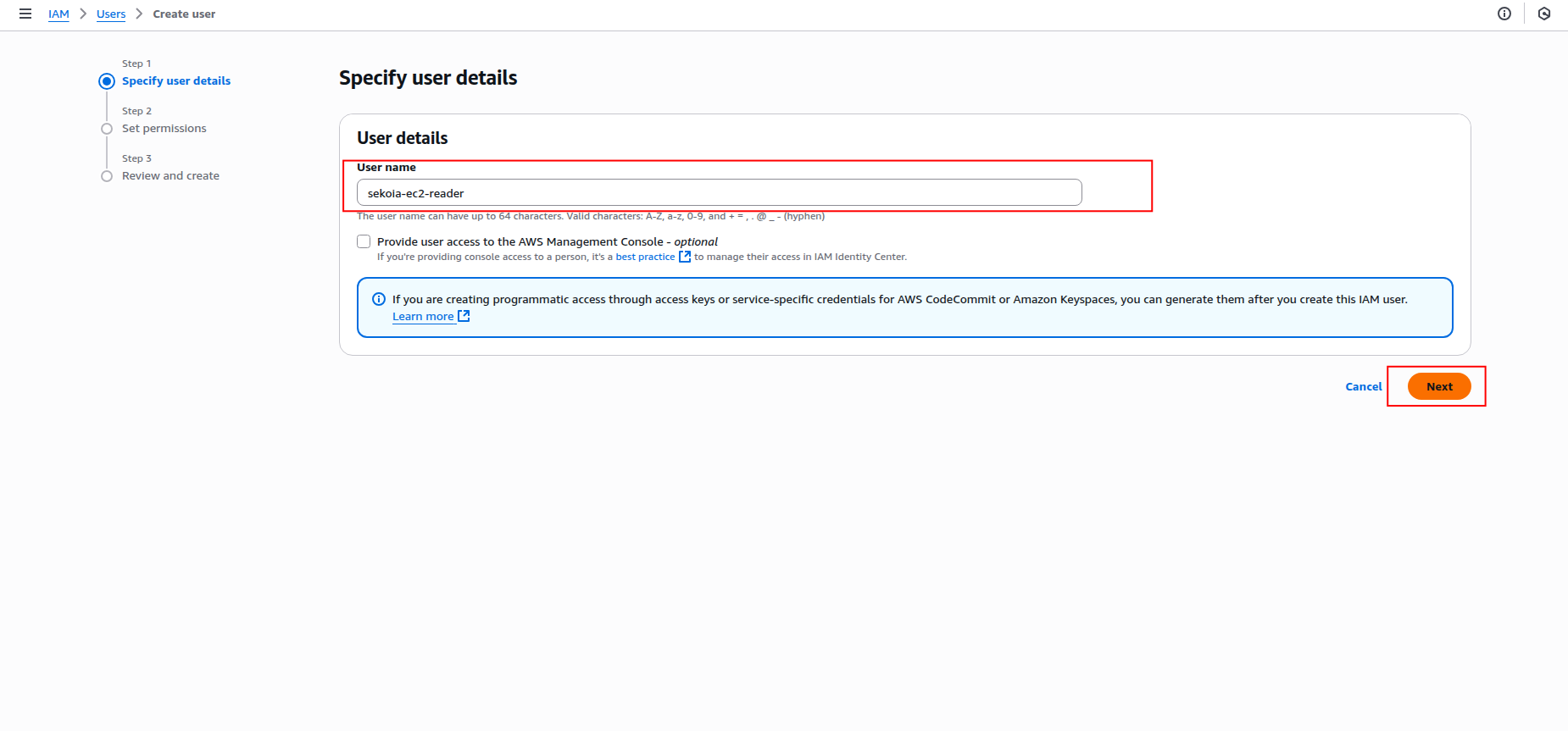

  3. Enter a username for the IAM user (e.g., sekoia-ec2-reader) and click Next.

    Create user form with username field

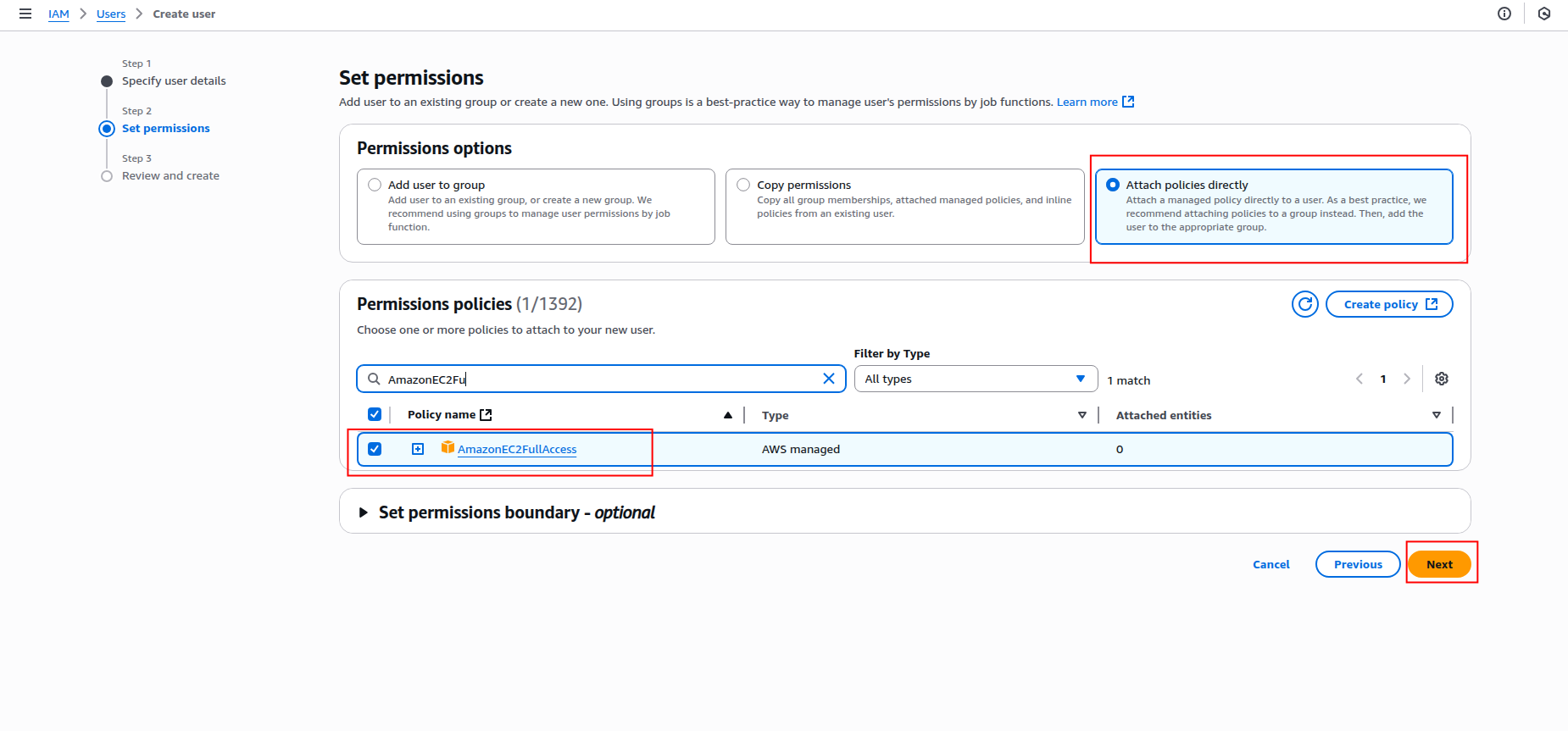

  4. In the Set permissions step, select Attach policies directly and search for the following policies:

    • AmazonEC2ReadOnlyAccess (for basic EC2 read access)
    • AmazonEC2FullAccess (if you need full EC2 access)

    Warning

    • Granting AmazonEC2FullAccess provides extensive permissions that may pose security risks. Only use it if absolutely necessary and ensure to follow the principle of least privilege.
    • Do not attach both policies to the same user, as this could lead to permission conflicts.

    Policy attachment page with EC2 policies selected

  5. Click Next to review, then click Create user.

How to generate access keys

After creating the IAM user, you need to generate access keys for programmatic access:

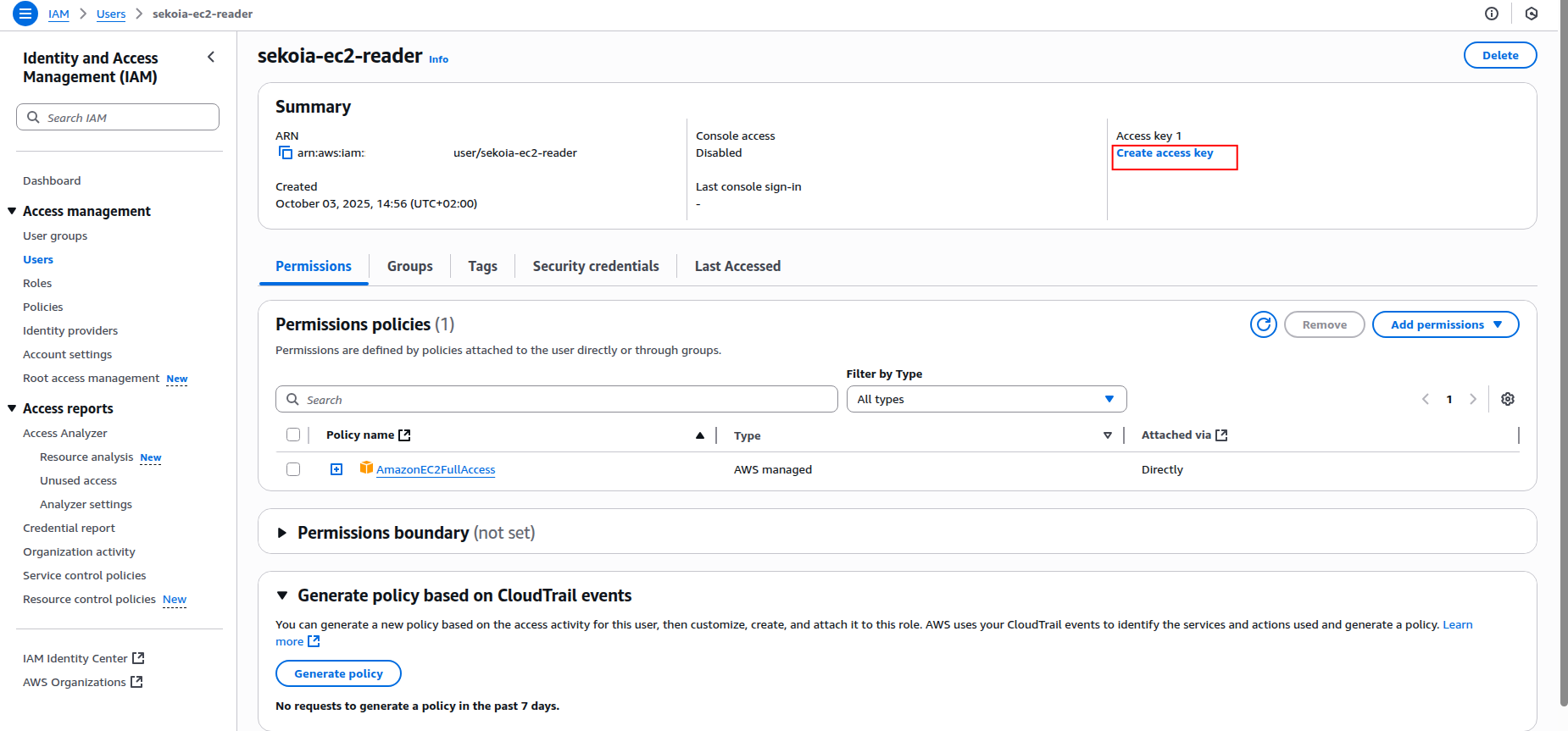

  1. Click on the created user name to open the user details page.

  2. Click the Create an access key button.

    Access keys section with Create access key button

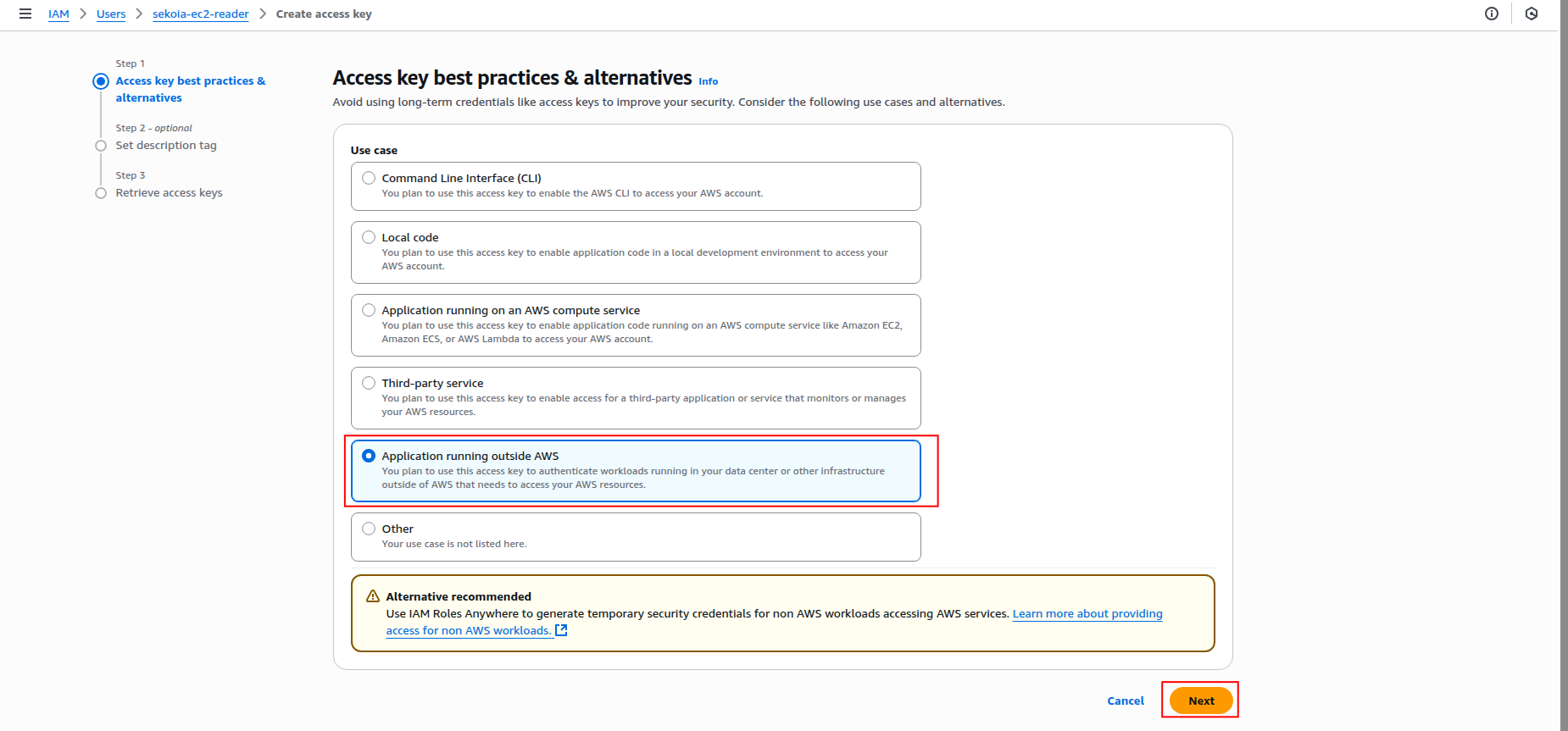

  3. Select Application running outside AWS as the use case and click Next.

    Access key use case selection

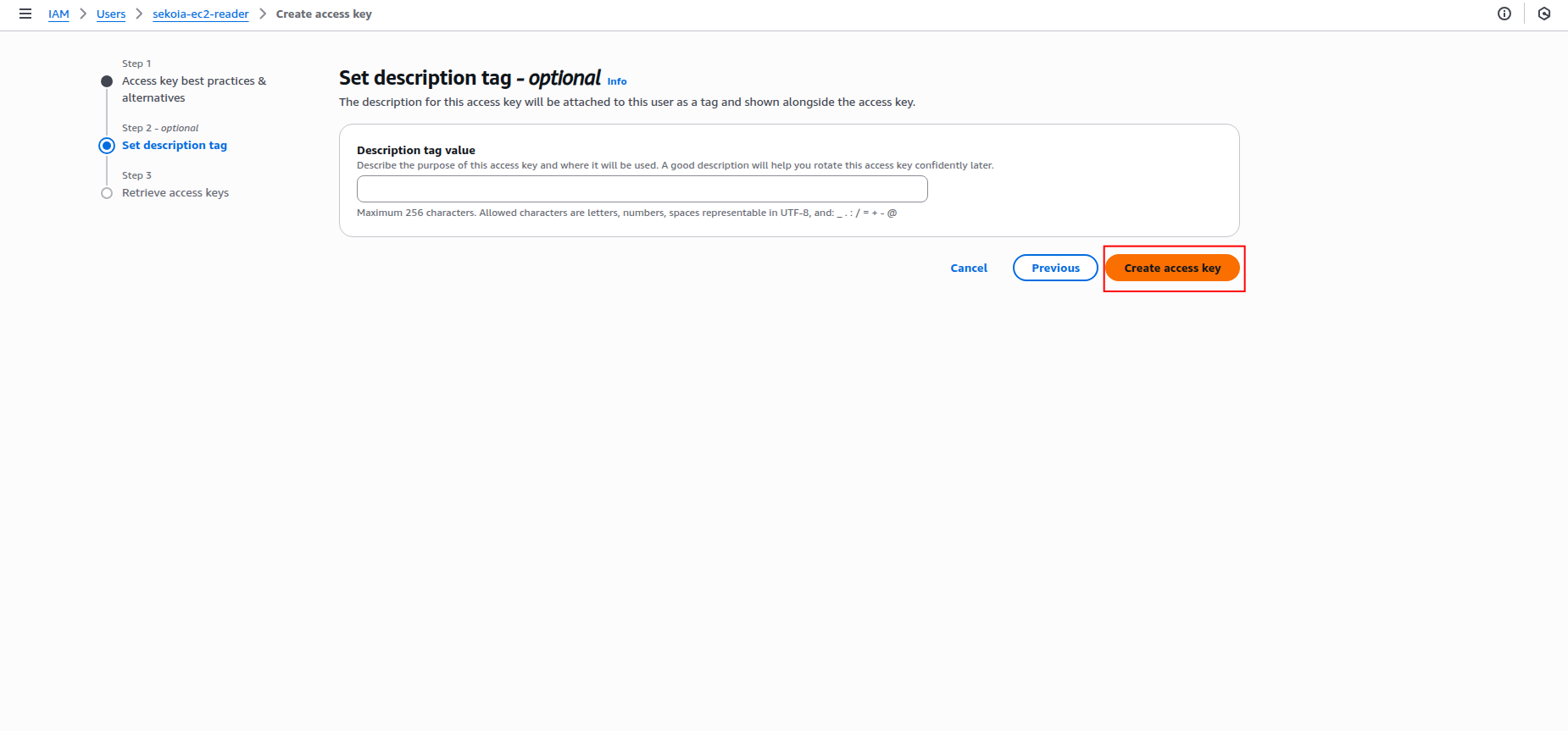

  4. Add a description tag (optional) and click Create access key.

    Access key creation with description tag

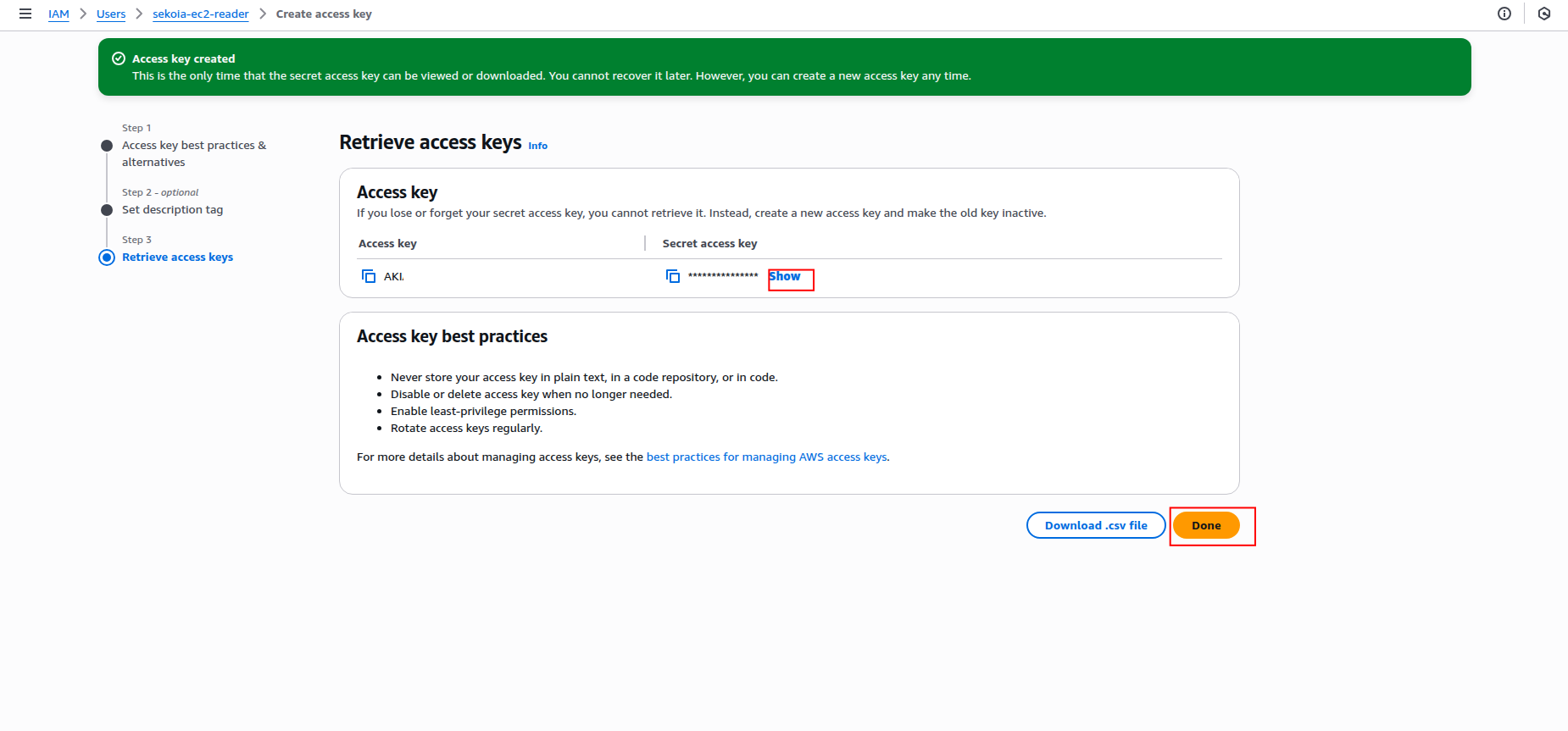

  5. Copy the Access key ID and Secret access key to a safe location. You'll need these credentials to configure the connector in Sekoia.io.

    Access key credentials display

Warning

  • The secret access key is only shown when you create it. If you lose it, you must create a new access key.
  • Store these credentials securely and never share them publicly.
  • Consider rotating access keys regularly for security best practices.

Required IAM permissions

Both the IAM Role (OIDC) and IAM user (static keys) must have the following permissions to successfully fetch EC2 devices:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "ec2:DescribeInstances",
                "ec2:DescribeImages",
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeVpcs",
                "ec2:DescribeSubnets",
                "ec2:DescribeVolumes",
                "ec2:DescribeNetworkInterfaces",
                "ec2:DescribeTags"
            ],
            "Resource": "*"
        }
    ]
}

Supported AWS regions

The AWS EC2 connector supports all AWS regions where EC2 is available. Common regions include:

  • US East (N. Virginia): us-east-1
  • US West (Oregon): us-west-2
  • Europe (Ireland): eu-west-1
  • Europe (London): eu-west-2
  • Asia Pacific (Tokyo): ap-northeast-1
  • Asia Pacific (Singapore): ap-southeast-1

For a complete list of available regions, refer to the AWS Global Infrastructure documentation.

Create your asset

To start getting your AWS EC2 instances into Sekoia.io, you need to create an asset connector on the Assets page. To do so, follow these steps:

  1. Click the Asset connectors button to create a new connector.

    Asset connectors button highlighted

  2. Click the + New connector button.

    New connector button highlighted

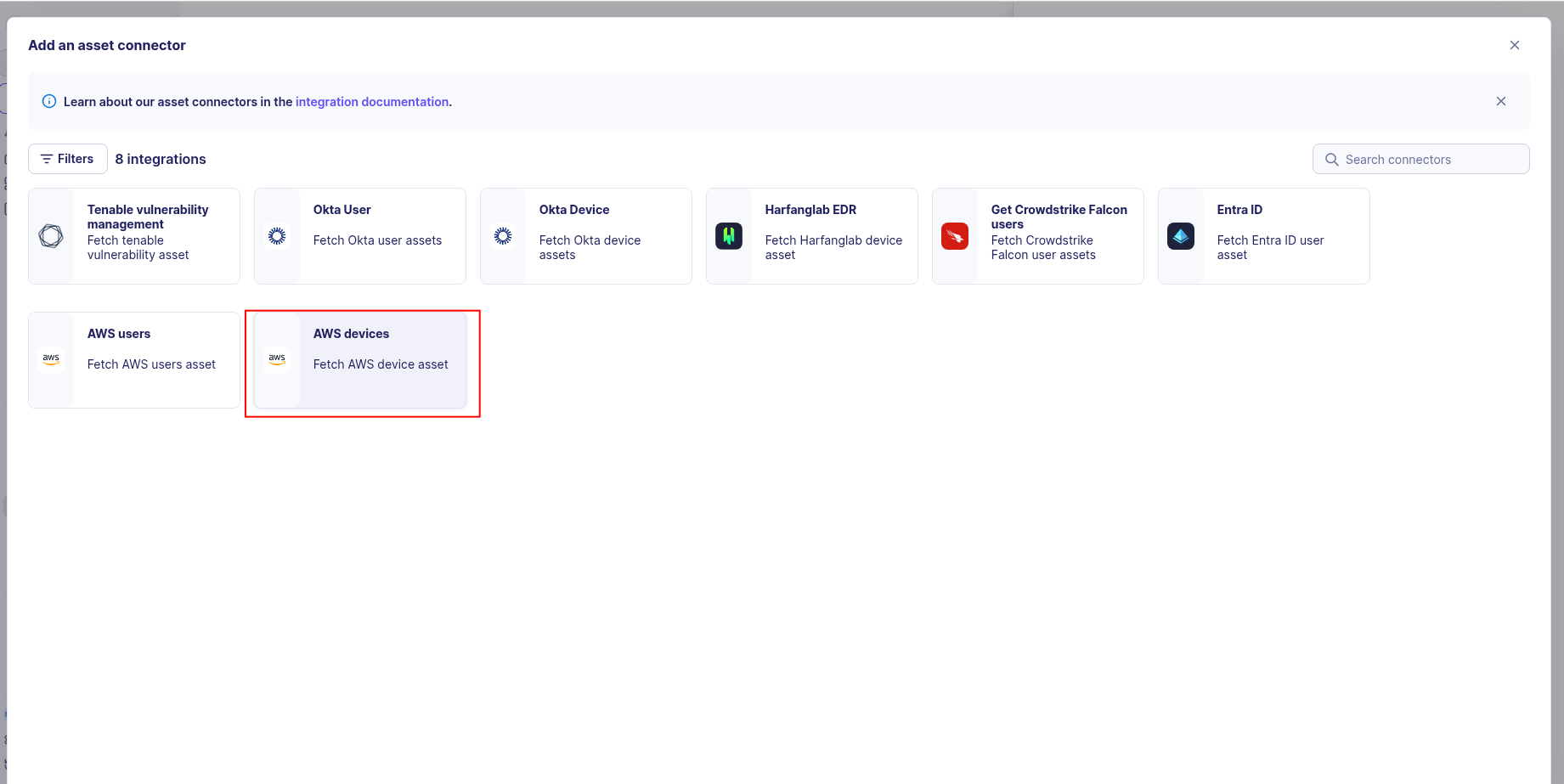

  3. Choose AWS devices, give it a name, and fill the required fields:

    AWS EC2 Device connector configuration form

  4. Enter the following information:

    • Region: The AWS region where your EC2 instances are located (e.g., us-east-1)
    • For OIDC (Recommended): set the Role ARN to the ARN of the role you created
    • For Static Access Keys: set the Access Key ID and Secret Access Key from your IAM user

  5. Test the connection by clicking the Test connector button.

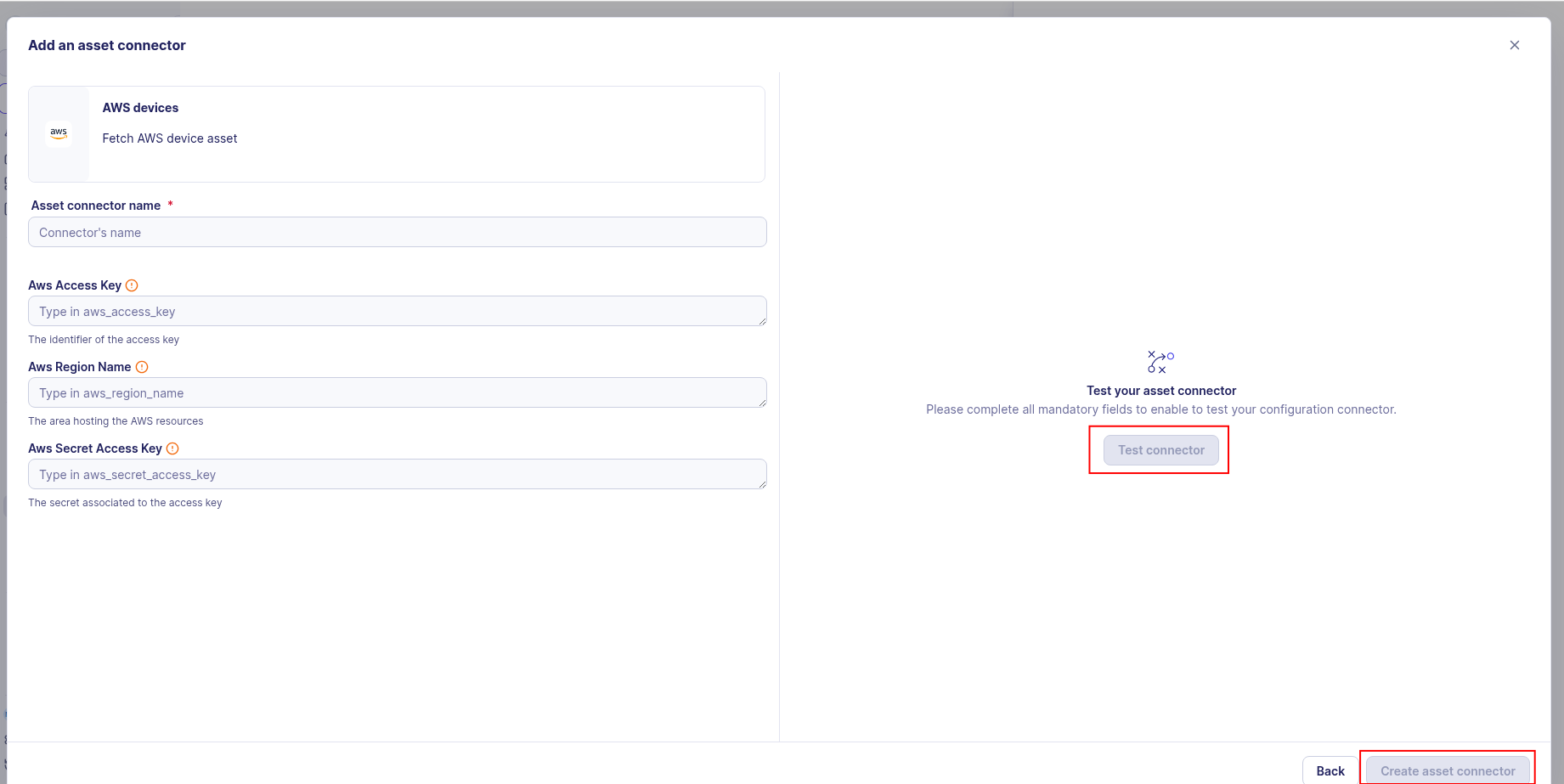

    Connector test result and Create asset connector button highlighted

  6. Click the Create asset connector button.

OCSF Mapping for AWS Devices

OCSF Class: Device Inventory Info

Class UID: 5001

OCSF Version: 1.6.0

Information Collected

The AWS Devices fetches comprehensive information and transforms it into the OCSF (Open Cybersecurity Schema Framework) format for standardized security monitoring and asset management.

API Response Examples

AWS EC2 Instance

EC2 instance with network interfaces, security groups, and organizational context

{
  "InstanceId": "i-0abcd1234efgh5678",
  "InstanceType": "t3.medium",
  "ImageId": "ami-0c55b159cbfafe1f0",
  "State": {
    "Name": "running",
    "Code": 16
  },
  "PublicDnsName": "ec2-11-22-44-66.compute-1.amazonaws.com",
  "PublicIpAddress": "1.2.3.4",
  "PrivateDnsName": "ip-11-00-1-15.ec2.internal",
  "PrivateIpAddress": "11.00.1.15",
  "PlatformDetails": "Linux/UNIX",
  "LaunchTime": "2025-08-26T14:34:38.000Z",
  "Hypervisor": "xen",
  "SubnetId": "subnet-0123abcd",
  "VpcId": "vpc-12345678",
  "Tags": [
    {
      "Key": "Name",
      "Value": "web-server-prod-01"
    },
    {
      "Key": "aws:autoscaling:groupName",
      "Value": "asg-web-servers"
    }
  ],
  "SecurityGroups": [
    {
      "GroupId": "sg-0123abcd",
      "GroupName": "web-sg"
    },
    {
      "GroupId": "sg-0123efgh",
      "GroupName": "default"
    }
  ],
  "NetworkInterfaces": [
    {
      "NetworkInterfaceId": "eni-0123abcd",
      "Description": "Primary network interface",
      "MacAddress": "01:01:ac:00:01:96",
      "PrivateIpAddress": "11.00.1.15",
      "PrivateDnsName": "ip-11-00-1-15.ec2.internal"
    }
  ],
  "IamInstanceProfile": {
    "Arn": "arn:aws:iam::123456789012:instance-profile/ec2-role"
  },
  "BlockDeviceMappings": [
    {
      "DeviceName": "/dev/xvda",
      "Ebs": {
        "VolumeId": "vol-0123abcd",
        "AttachTime": "2025-08-26T14:34:38.000Z",
        "DeleteOnTermination": true,
        "Status": "attached"
      }
    }
  ]
}

AWS EC2 Instance Minimal

EC2 instance with minimal configuration

{
  "InstanceId": "i-1234567890abcdef0",
  "InstanceType": "t2.micro",
  "ImageId": "ami-12345678",
  "State": {
    "Name": "running"
  },
  "PrivateDnsName": "ip-2-3-0-1.ec2.internal",
  "PrivateIpAddress": "2.3.0.1",
  "PlatformDetails": "Linux/UNIX",
  "LaunchTime": "2025-06-15T10:00:00.000Z",
  "Hypervisor": "xen",
  "SubnetId": "subnet-default",
  "VpcId": "vpc-default",
  "Tags": [],
  "SecurityGroups": [
    {
      "GroupId": "sg-default",
      "GroupName": "default"
    }
  ],
  "NetworkInterfaces": [
    {
      "NetworkInterfaceId": "eni-default",
      "MacAddress": "02:ab:cd:ef:12:34",
      "PrivateIpAddress": "1.2.3.4",
      "PrivateDnsName": "ip-1-2-3-4.ec2.internal"
    }
  ]
}

Data Mapping Table

The following table shows how source data is mapped to OCSF model fields:

Source Field OCSF Field Path Description Data Type Logic
static: 2 activity_id OCSF activity ID integer Always 2 for 'Collect' activity
static: Collect activity_name OCSF activity name string Always 'Collect' for asset inventory
static: Discovery category_name OCSF category name string Always 'Discovery'
static: 5 category_uid OCSF category UID integer Always 5 for Discovery category
static: Device Inventory Info class_name OCSF class name string Always 'Device Inventory Info'
static: 5001 class_uid OCSF class UID integer Always 5001 for Device Inventory Info
static: 500102 type_uid OCSF type UID integer Always 500102 for Device Inventory Info: Collect type
static: Device Inventory Info: Collect type_name OCSF type name string Concatenate 'Device Inventory Info: Collect'
static: Informational severity Event severity string Always 'Informational' for inventory events
static: 1 severity_id OCSF severity ID integer Always 1 for Informational severity
LaunchTime time OCSF event timestamp timestamp Convert ISO 8601 to Unix epoch for OCSF event timestamp
static: AWS EC2 metadata.product.name Product name string Always 'AWS EC2'
static: N/A metadata.product.version Product version) string Always N/A
static: 1.6.0 metadata.version OCSF schema version string Fixed OCSF schema version
static: Server device.type OCSF device type string Always 'Server' for EC2 instances
static: 1 device.type_id OCSF device type ID integer Always 1 for Server type
InstanceId device.uid Unique EC2 instance identifier string Direct mapping of EC2 instance ID
PublicDnsName || PrivateDnsName || InstanceId device.hostname Device hostname or DNS name string One of Public DNS, Private DNS, or Instance ID (in that order) as hostname
Tags[Key='Name'].Value device.name Device name from tags string Extract 'Name' tag value; if absent, use InstanceId
PlatformDetails device.os.name Operating system name string Direct mapping (e.g., 'Linux/UNIX', 'Windows', 'macOS')
PlatformDetails device.os.type Operating system type string Parse OS: 'windows'→Windows, 'linux'/'unix'→Linux, 'mac'→macOS, else→Unknown
PlatformDetails device.os.type_id OCSF OS type ID integer Map OS type: Windows→100, Linux→200, macOS→300, Unknown→0
NetworkInterfaces[] device.network_interfaces[] List of network interfaces attached to device object Iterate over network interfaces; map each field according to sub-mappings below
NetworkInterfaces[].NetworkInterfaceId device.network_interfaces[].uid Network interface unique ID string Direct mapping of ENI ID
NetworkInterfaces[].Description device.network_interfaces[].name Interface description or name string Direct mapping; fallback to 'Primary network interface' if empty
NetworkInterfaces[].MacAddress device.network_interfaces[].mac MAC address string Direct mapping
NetworkInterfaces[].PrivateIpAddress device.network_interfaces[].ip Network interface IP address ip Direct mapping of private IP
NetworkInterfaces[].PrivateDnsName device.network_interfaces[].hostname Network interface hostname string Direct mapping of private DNS name
static: Wired device.network_interfaces[].type Interface type string Always 'Wired' for EC2 network interfaces
static: 1 device.network_interfaces[].type_id Interface type ID integer Always 1 for Wired interface type
SecurityGroups[].GroupId device.groups[].uid Security group unique ID string Direct mapping of security group ID
SecurityGroups[].GroupName device.groups[].name Security group name string Direct mapping of security group name
PublicIpAddress || PrivateIpAddress device.ip Primary device IP address ip Prefer public IP; fallback to private IP
Placement.AvailabilityZone device.region AWS availability zone (region) string Extract availability zone (e.g., 'us-east-1a')
SubnetId device.subnet VPC subnet ID string Direct mapping of subnet ID
VpcId device.domain VPC ID for network domain string Direct mapping of VPC ID (mapped as domain)
Hypervisor device.hypervisor Hypervisor type string Direct mapping (e.g., 'xen', 'nitro')
static: Amazon Web Services device.vendor_name Device vendor name string Always 'Amazon Web Services'
InstanceType device.model EC2 instance type string Direct mapping (e.g., 't3.medium', 'm5.large')
LaunchTime device.boot_time Instance launch/boot time timestamp Convert ISO 8601 to string (ISO format preferred)
BlockDeviceMappings[0].Ebs.AttachTime || LaunchTime device.created_time Device creation timestamp timestamp Use EBS attachment time if available; fallback to launch time; convert to Unix epoch
IamInstanceProfile device.is_managed Whether instance has IAM role (managed by policies) boolean true if IamInstanceProfile is present and not empty; false otherwise
Tags[Key='aws:autoscaling:groupName'].Value device.autoscale_uid Auto Scaling group name string Extract 'aws:autoscaling:groupName' tag value if present
ImageId + State.Name device.desc Device description with image and state string Concatenate as 'AMI: , State: '
OwnerId device.org.uid AWS account ID string Direct mapping of AWS account ID
OwnerId device.org.name Organization/Account name string Format as 'AWS Account '

OCSF Model Structure

Device Inventory Info: Collect

Transformed EC2 instance to OCSF Device Inventory Info event

{
  "activity_id": 2,
  "activity_name": "Collect",
  "category_name": "Discovery",
  "category_uid": 5,
  "class_name": "Device Inventory Info",
  "class_uid": 5001,
  "type_name": "Device Inventory Info: Collect",
  "type_uid": 500102,
  "severity": "Informational",
  "severity_id": 1,
  "time": 1725011678,
  "metadata": {
    "product": {
      "name": "AWS EC2",
      "version": "1.6.0"
    },
    "version": "1.6.0"
  },
  "device": {
    "uid": "i-0abcd1234efgh5678",
    "name": "web-server-prod-01",
    "hostname": "ec2-11-22-44-66.compute-1.amazonaws.com",
    "type": "Server",
    "type_id": 1,
    "vendor_name": "Amazon Web Services",
    "ip": "1.2.3.4",
    "model": "t3.medium",
    "image_id": "ami-0c55b159cbfafe1f0",
    "state": "running",
    "region": "us-east-1a",
    "subnet": "subnet-0123abcd",
    "domain": "vpc-12345678",
    "hypervisor": "xen",
    "is_managed": true,
    "autoscale_uid": "asg-web-servers",
    "boot_time": "2025-08-26T14:34:38Z",
    "created_time": 1725011678,
    "os": {
      "name": "Linux/UNIX",
      "type": "Linux",
      "type_id": 200
    },
    "network_interfaces": [
      {
        "uid": "eni-0123abcd",
        "name": "Primary network interface",
        "ip": "11.00.1.15",
        "hostname": "ip-11-00-1-15.ec2.internal",
        "mac": "01:01:ac:00:01:96",
        "type": "Wired",
        "type_id": 1
      }
    ],
    "groups": [
      {
        "uid": "sg-0123abcd",
        "name": "web-sg"
      },
      {
        "uid": "sg-0123efgh",
        "name": "default"
      }
    ],
    "org": {
      "uid": "123456789012",
      "name": "AWS Account 123456789012"
    },
    "desc": "AMI: ami-0c55b159cbfafe1f0, State: running"
  }
}

Further Reading
