Trapster
Overview
Trapster deploys honeypots across your network to detect lateral movements, malicious scans, and insider threats. These digital decoys have no legitimate use, so any interaction immediately signals suspicious activity. With near-zero false positives and instant alerts, security teams can quickly identify and investigate potential intrusions. You also receive alerts for any attempted connection to the honeypots as well as the use of honeytokens or breadcrumbs, helping reduce overall detection time.
Warning
Important note - This format is currently in beta. We highly value your feedback to improve its performance.
- Vendor: Ballpoint
- Supported environment: SaaS
- Detection based on: Alert
- Supported application or feature: Honeypot alerts (lateral movement, scans, honeytokens, breadcrumbs, threats)
Configure
This setup guide describes how to forward events from Trapster to Sekoia.io via webhook.
Create an intake
- Go to the intake page.
- Click + New Intake.
- Select the format Trapster.
- Copy the intake key created(you will need it in the next step).
Configure Trapster
- Log in to your Trapster console.
- Navigate to Settings.
- Select Webhooks.

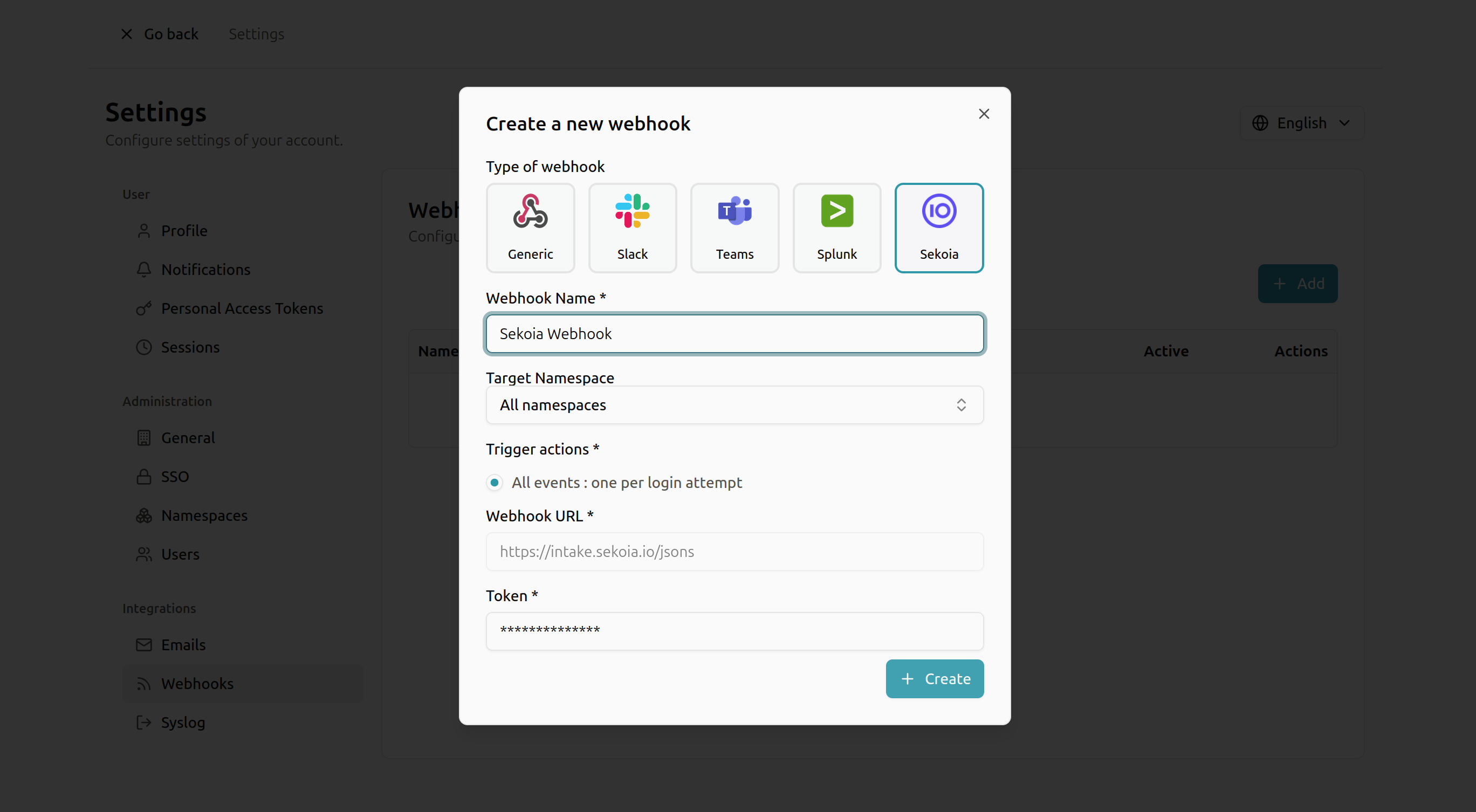

- Click + Add to create a new webhook.
- Choose Sekoia as the webhook type.
- Enter a name for the webhook.
- Paste the Intake Key (Token) copied from Sekoia.io.
- Click save to apply the configuration.

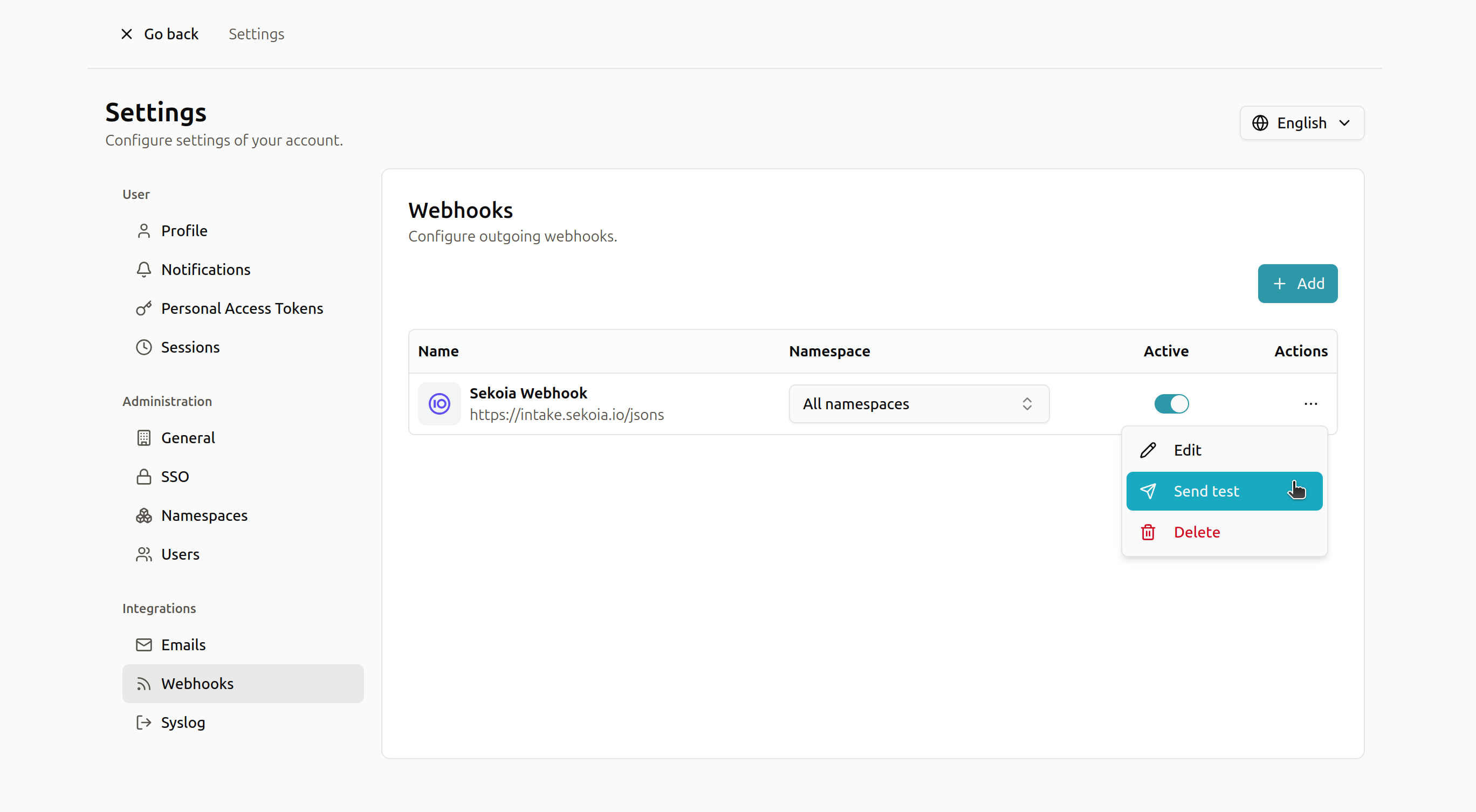

- Test the integration by clicking on the three-dot menu next to the webhook you created and then Send test.
Your events will then be available on the Events page.
Raw Events Samples
In this section, you will find examples of raw logs as generated natively by the source. These examples are provided to help integrators understand the data format before ingestion into Sekoia.io. It is crucial for setting up the correct parsing stages and ensuring that all relevant information is captured.
{
"source": "Trapster",
"action": "event_new",
"id": "00000000-0000-0000-0000-000000000000",
"device": {
"id": "11111111-1111-1111-1111-111111111111",
"name": "my-trapster",
"template": "christmas_tree"
},
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"channel": "breadcrumb",
"category": "login",
"logtype": "breadcrumb.login",
"src_ip": "1.2.3.4",
"src_ip_reverse": null,
"src_port": null,
"dst_ip": "5.6.7.8",
"dst_port": 443,
"timestamp": "2026-01-22 13:13:49.603007+00:00",
"data": "",
"extra": {
"password": "password",
"username": "username"
},
"type": 0
}
{
"source": "Trapster",
"action": "incident_created",
"id": "33333333-3333-3333-3333-333333333333",
"device": {
"id": "11111111-1111-1111-1111-111111111111",
"name": "My Trapster",
"template": "christmas_tree"
},
"group": null,
"channel": "device",
"category": "disconnected",
"description": "Your Trapster has been disconnected",
"src_ip": "1.2.3.4",
"src_ip_reverse": null,
"src_port": null,
"dst_ip": null,
"dst_port": null,
"start_time": "2026-01-21T15:57:50.375491+00:00",
"end_time": "2026-01-21T15:57:50.375491+00:00",
"acknowledged": false,
"events_count": 1,
"type": 2
}
{
"action": "event_new",
"category": "connection",
"channel": "ftp",
"data": "",
"device": {
"id": "33333333-3333-3333-3333-333333333333",
"name": "My Trapster",
"template": "custom"
},
"dst_ip": "5.6.7.8",
"dst_port": 21,
"extra": {},
"id": "70d67dbc-336a-4199-807a-14edc1c1ace6",
"logtype": "ftp.connection",
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"source": "Trapster",
"src_ip": "1.2.3.4",
"src_ip_reverse": null,
"src_port": 32794,
"timestamp": "2026-02-13 09:43:56.793218+00:00",
"type": 0
}
{
"action": "event_new",
"category": "data",
"channel": "ftp",
"data": "515549540d0a",
"device": {
"id": "33333333-3333-3333-3333-333333333333",
"name": "My Trapster",
"template": "custom"
},
"dst_ip": "5.6.7.8",
"dst_port": 21,
"extra": {},
"id": "33333333-3333-3333-3333-333333333333",
"logtype": "ftp.data",
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"source": "Trapster",
"src_ip": "1.2.3.4",
"src_ip_reverse": null,
"src_port": 32794,
"timestamp": "2026-02-13 09:44:07.984270+00:00",
"type": 0
}
{
"action": "event_new",
"category": "login",
"channel": "ftp",
"data": "",
"device": {
"id": "33333333-3333-3333-3333-333333333333",
"name": "My Trapster",
"template": "custom"
},
"dst_ip": "5.6.7.8",
"dst_port": 21,
"extra": {
"password": "password",
"username": "username"
},
"id": "33333333-3333-3333-3333-333333333333",
"logtype": "ftp.login",
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"source": "Trapster",
"src_ip": "1.2.3.4",
"src_ip_reverse": null,
"src_port": 32794,
"timestamp": "2026-02-13 09:44:06.744949+00:00",
"type": 0
}
{
"source": "Trapster",
"action": "event_new",
"id": "104",
"device": {},
"group": null,
"incident": {
"id": "33333333-3333-3333-3333-333333333333"
},
"channel": "honeytoken",
"category": "url",
"logtype": "honeytoken.url",
"src_ip": "1.2.3.4",
"src_port": null,
"dst_ip": null,
"dst_port": 443,
"timestamp": "2026-01-23 15:11:30.345795+00:00",
"data": null,
"extra": {
"headers": {
"Host": "example.com:8000",
"Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
"Connection": "keep-alive",
"User-Agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0",
"Remote-Addr": "1.2.3.4",
"Accept-Encoding": "gzip, deflate",
"Accept-Language": "fr,fr-FR;q=0.9,en-US;q=0.8,en;q=0.7",
"Upgrade-Insecure-Requests": "1"
}
},
"type": 0
}
{
"action": "event_new",
"category": "js_clone",
"channel": "honeytoken",
"data": null,
"device": {},
"dst_ip": null,
"dst_port": 443,
"extra": {
"headers": {
"Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
"Accept-Encoding": "gzip, deflate",
"Accept-Language": "fr,fr-FR;q=0.9,en-US;q=0.8,en;q=0.7",
"Connection": "keep-alive",
"Host": "supertest.local:8000",
"Remote-Addr": "172.18.0.1",
"Upgrade-Insecure-Requests": "1",
"User-Agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0"
}
},
"id": "33333333-3333-3333-3333-333333333333",
"logtype": "honeytoken.js_clone",
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"source": "Trapster",
"src_ip": "1.2.3.4",
"src_ip_reverse": "bravo",
"src_port": null,
"timestamp": "2026-02-12 14:44:59.202084+00:00",
"type": 0
}
{
"source": "Trapster",
"action": "event_new",
"id": "33333333-3333-3333-3333-333333333333",
"device": {
"id": "33333333-3333-3333-3333-333333333333",
"name": "My Trapster",
"template": "custom"
},
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"channel": "http",
"category": "query",
"logtype": "http.query",
"src_ip": "1.2.3.4",
"src_port": 39652,
"dst_ip": "5.6.7.8",
"dst_port": 80,
"timestamp": "2026-02-12 15:20:33.626254+00:00",
"data": "",
"extra": {
"skin": "fortigate",
"method": "GET",
"target": "/",
"headers": {
"host": "5.6.7.8",
"accept": "*/*",
"user-agent": "curl/8.5.0"
},
"status_code": 200
},
"type": 0
}
{
"action": "event_new",
"category": "query",
"channel": "portscan",
"data": "",
"device": {
"id": "33333333-3333-3333-3333-333333333333",
"name": "My Trapster",
"template": "custom"
},
"dst_ip": "5.6.7.8",
"dst_port": 1,
"extra": {
"flags": [
"SYN"
],
"ports": [
"1",
"3",
"4",
"6",
"7",
"9",
"13",
"17",
"19",
"20",
"21",
"22",
"23",
"24",
"25"
]
},
"id": "28213110-e616-4193-a545-a98d61984a18",
"logtype": "portscan.query",
"namespace": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "default"
},
"source": "Trapster",
"src_ip": "1.2.3.4",
"src_ip_reverse": null,
"src_port": 1,
"timestamp": "2026-02-13 13:00:09.677008+00:00",
"type": 0
}
{
"source": "Trapster",
"action": "incident_test",
"id": "11111111-1111-1111-1111-111111111111",
"device": {
"id": "22222222-2222-2222-2222-222222222222",
"name": "test-honeypot",
"template": null
},
"group": null,
"channel": "test",
"category": "login",
"description": "Test incident",
"src_ip": "1.2.3.4",
"src_ip_reverse": "example.com",
"src_port": null,
"dst_ip": "5.6.7.8",
"dst_port": 22,
"start_time": "2026-01-20T15:39:55.380076+00:00",
"end_time": "2026-01-20T15:40:00.380091+00:00",
"acknowledged": false,
"events_count": 0,
"type": 2
}
Detection section
The following section provides information for those who wish to learn more about the detection capabilities enabled by collecting this intake. It includes details about the built-in rule catalog, event categories, and ECS fields extracted from raw events. This is essential for users aiming to create custom detection rules, perform hunting activities, or pivot in the events page.
Related Built-in Rules
The following Sekoia.io built-in rules match the intake Trapster (by Ballpoint) [BETA]. This documentation is updated automatically and is based solely on the fields used by the intake which are checked against our rules. This means that some rules will be listed but might not be relevant with the intake.
SEKOIA.IO x Trapster (by Ballpoint) [BETA] on ATT&CK Navigator
Bazar Loader DGA (Domain Generation Algorithm)
Detects Bazar Loader domains based on the Bazar Loader DGA
- Effort: elementary
Cryptomining
Detection of domain names potentially related to cryptomining activities.
- Effort: master
Dynamic DNS Contacted
Detect communication with dynamic dns domain. This kind of domain is often used by attackers. This rule can trigger false positive in non-controlled environment because dynamic dns is not always malicious.
- Effort: master
EvilProxy Phishing Domain
Detects subdomains potentially generated by the EvilProxy adversary-in-the-middle phishing platform. Inspect the other subdomains of the domain to identify the landing page, and determine if the user submitted credentials. This rule has a small percentage of false positives on legitimate domains.
- Effort: intermediate
Exfiltration Domain
Detects traffic toward a domain flagged as a possible exfiltration vector.
- Effort: master
Nimbo-C2 User Agent
Nimbo-C2 Uses an unusual User-Agent format in its implants.
- Effort: intermediate
Potential Bazar Loader User-Agents
Detects potential Bazar loader communications through the user-agent
- Effort: elementary
Potential Lemon Duck User-Agent
Detects LemonDuck user agent. The format used two sets of alphabetical characters separated by dashes, for example "User-Agent: Lemon-Duck-[A-Z]-[A-Z]".
- Effort: elementary
Potential LokiBot User-Agent
Detects potential LokiBot communications through the user-agent
- Effort: intermediate
Remote Access Tool Domain
Detects traffic toward a domain flagged as a Remote Administration Tool (RAT).
- Effort: master
Remote Monitoring and Management Software - AnyDesk
Detect artifacts related to the installation or execution of the Remote Monitoring and Management tool AnyDesk.
- Effort: master
SEKOIA.IO Intelligence Feed
Detect threats based on indicators of compromise (IOCs) collected by SEKOIA's Threat and Detection Research team.
- Effort: elementary
Sekoia.io EICAR Detection
Detects observables in Sekoia.io CTI tagged as EICAR, which are fake samples meant to test detection.
- Effort: master
TOR Usage Generic Rule
Detects TOR usage globally, whether the IP is a destination or source. TOR is short for The Onion Router, and it gets its name from how it works. TOR intercepts the network traffic from one or more apps on user’s computer, usually the user web browser, and shuffles it through a number of randomly-chosen computers before passing it on to its destination. This disguises user location, and makes it harder for servers to pick him/her out on repeat visits, or to tie together separate visits to different sites, this making tracking and surveillance more difficult. Before a network packet starts its journey, user’s computer chooses a random list of relays and repeatedly encrypts the data in multiple layers, like an onion. Each relay knows only enough to strip off the outermost layer of encryption, before passing what’s left on to the next relay in the list.
- Effort: master
Event Categories
The following table lists the data source offered by this integration.
| Data Source | Description |
|---|---|
Network intrusion detection system |
None |
In details, the following table denotes the type of events produced by this integration.
| Name | Values |
|---|---|
| Kind | alert |
| Category | host, intrusion_detection |
| Type | device, info |
Transformed Events Samples after Ingestion
This section demonstrates how the raw logs will be transformed by our parsers. It shows the extracted fields that will be available for use in the built-in detection rules and hunting activities in the events page. Understanding these transformations is essential for analysts to create effective detection mechanisms with custom detection rules and to leverage the full potential of the collected data.
{
"message": "{\"source\": \"Trapster\", \"action\": \"event_new\", \"id\": \"00000000-0000-0000-0000-000000000000\", \"device\": {\"id\": \"11111111-1111-1111-1111-111111111111\", \"name\": \"my-trapster\", \"template\": \"christmas_tree\"}, \"namespace\": {\"id\": \"22222222-2222-2222-2222-222222222222\", \"name\": \"default\"}, \"channel\": \"breadcrumb\", \"category\": \"login\", \"logtype\": \"breadcrumb.login\", \"src_ip\": \"1.2.3.4\", \"src_ip_reverse\": null, \"src_port\": null, \"dst_ip\": \"5.6.7.8\", \"dst_port\": 443, \"timestamp\": \"2026-01-22 13:13:49.603007+00:00\", \"data\": \"\", \"extra\": {\"password\": \"password\", \"username\": \"username\"}, \"type\": 0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "login",
"channel": "breadcrumb",
"device": {
"name": "my-trapster",
"template": "christmas_tree"
},
"extra": {
"password": "password",
"username": "username"
}
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 443
},
"device": {
"id": "11111111-1111-1111-1111-111111111111"
},
"host": {
"name": "my-trapster"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4"
}
}
{
"message": "{\"source\": \"Trapster\", \"action\": \"incident_created\", \"id\": \"33333333-3333-3333-3333-333333333333\", \"device\": {\"id\": \"11111111-1111-1111-1111-111111111111\", \"name\": \"My Trapster\", \"template\": \"christmas_tree\"}, \"group\": null, \"channel\": \"device\", \"category\": \"disconnected\", \"description\": \"Your Trapster has been disconnected\", \"src_ip\": \"1.2.3.4\", \"src_ip_reverse\": null, \"src_port\": null, \"dst_ip\": null, \"dst_port\": null, \"start_time\": \"2026-01-21T15:57:50.375491+00:00\", \"end_time\": \"2026-01-21T15:57:50.375491+00:00\", \"acknowledged\": false, \"events_count\": 1, \"type\": 2}",
"event": {
"action": "incident_created",
"category": [
"host"
],
"end": "2026-01-21T15:57:50.375491Z",
"reason": "Your Trapster has been disconnected",
"start": "2026-01-21T15:57:50.375491Z",
"type": [
"device"
]
},
"ballpoint": {
"trapster": {
"acknowledged": false,
"category": "disconnected",
"channel": "device",
"device": {
"name": "My Trapster",
"template": "christmas_tree"
},
"events_count": 1
}
},
"device": {
"id": "11111111-1111-1111-1111-111111111111"
},
"host": {
"name": "My Trapster"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"ip": [
"1.2.3.4"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4"
}
}
{
"message": "{\"action\":\"event_new\",\"category\":\"connection\",\"channel\":\"ftp\",\"data\":\"\",\"device\":{\"id\":\"33333333-3333-3333-3333-333333333333\",\"name\":\"My Trapster\",\"template\":\"custom\"},\"dst_ip\":\"5.6.7.8\",\"dst_port\":21,\"extra\":{},\"id\":\"70d67dbc-336a-4199-807a-14edc1c1ace6\",\"logtype\":\"ftp.connection\",\"namespace\":{\"id\":\"22222222-2222-2222-2222-222222222222\",\"name\":\"default\"},\"source\":\"Trapster\",\"src_ip\":\"1.2.3.4\",\"src_ip_reverse\":null,\"src_port\":32794,\"timestamp\":\"2026-02-13 09:43:56.793218+00:00\",\"type\":0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "connection",
"channel": "ftp",
"device": {
"name": "My Trapster",
"template": "custom"
},
"extra": {}
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 21
},
"device": {
"id": "33333333-3333-3333-3333-333333333333"
},
"host": {
"name": "My Trapster"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4",
"port": 32794
}
}
{
"message": "{\"action\":\"event_new\",\"category\":\"data\",\"channel\":\"ftp\",\"data\":\"515549540d0a\",\"device\":{\"id\":\"33333333-3333-3333-3333-333333333333\",\"name\":\"My Trapster\",\"template\":\"custom\"},\"dst_ip\":\"5.6.7.8\",\"dst_port\":21,\"extra\":{},\"id\":\"33333333-3333-3333-3333-333333333333\",\"logtype\":\"ftp.data\",\"namespace\":{\"id\":\"22222222-2222-2222-2222-222222222222\",\"name\":\"default\"},\"source\":\"Trapster\",\"src_ip\":\"1.2.3.4\",\"src_ip_reverse\":null,\"src_port\":32794,\"timestamp\":\"2026-02-13 09:44:07.984270+00:00\",\"type\":0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "data",
"channel": "ftp",
"device": {
"name": "My Trapster",
"template": "custom"
},
"extra": {}
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 21
},
"device": {
"id": "33333333-3333-3333-3333-333333333333"
},
"host": {
"name": "My Trapster"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4",
"port": 32794
}
}
{
"message": "{\"action\":\"event_new\",\"category\":\"login\",\"channel\":\"ftp\",\"data\":\"\",\"device\":{\"id\":\"33333333-3333-3333-3333-333333333333\",\"name\":\"My Trapster\",\"template\":\"custom\"},\"dst_ip\":\"5.6.7.8\",\"dst_port\":21,\"extra\":{\"password\":\"password\",\"username\":\"username\"},\"id\":\"33333333-3333-3333-3333-333333333333\",\"logtype\":\"ftp.login\",\"namespace\":{\"id\":\"22222222-2222-2222-2222-222222222222\",\"name\":\"default\"},\"source\":\"Trapster\",\"src_ip\":\"1.2.3.4\",\"src_ip_reverse\":null,\"src_port\":32794,\"timestamp\":\"2026-02-13 09:44:06.744949+00:00\",\"type\":0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "login",
"channel": "ftp",
"device": {
"name": "My Trapster",
"template": "custom"
},
"extra": {
"password": "password",
"username": "username"
}
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 21
},
"device": {
"id": "33333333-3333-3333-3333-333333333333"
},
"host": {
"name": "My Trapster"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4",
"port": 32794
}
}
{
"message": "{\"source\": \"Trapster\", \"action\": \"event_new\", \"id\": \"104\", \"device\": {}, \"group\": null, \"incident\": {\"id\": \"33333333-3333-3333-3333-333333333333\"}, \"channel\": \"honeytoken\", \"category\": \"url\", \"logtype\": \"honeytoken.url\", \"src_ip\": \"1.2.3.4\",\"src_port\": null, \"dst_ip\": null, \"dst_port\": 443, \"timestamp\": \"2026-01-23 15:11:30.345795+00:00\", \"data\": null, \"extra\": {\"headers\": {\"Host\": \"example.com:8000\", \"Accept\": \"text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8\", \"Connection\": \"keep-alive\", \"User-Agent\": \"Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0\", \"Remote-Addr\": \"1.2.3.4\", \"Accept-Encoding\": \"gzip, deflate\", \"Accept-Language\": \"fr,fr-FR;q=0.9,en-US;q=0.8,en;q=0.7\", \"Upgrade-Insecure-Requests\": \"1\"}}, \"type\": 0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "url",
"channel": "honeytoken",
"extra": {
"headers": {
"Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
"Accept-Encoding": "gzip, deflate",
"Accept-Language": "fr,fr-FR;q=0.9,en-US;q=0.8,en;q=0.7",
"Connection": "keep-alive",
"Host": "example.com:8000",
"Remote-Addr": "1.2.3.4",
"Upgrade-Insecure-Requests": "1",
"User-Agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0"
}
}
}
},
"destination": {
"port": 443
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"hosts": [
"example.com"
],
"ip": [
"1.2.3.4"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4"
},
"url": {
"domain": "example.com",
"registered_domain": "example.com",
"top_level_domain": "com"
},
"user_agent": {
"device": {
"name": "Other"
},
"name": "Firefox",
"original": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0",
"os": {
"name": "Ubuntu"
},
"version": "147.0"
}
}
{
"message": "{\"action\":\"event_new\",\"category\":\"js_clone\",\"channel\":\"honeytoken\",\"data\":null,\"device\":{},\"dst_ip\":null,\"dst_port\":443,\"extra\":{\"headers\":{\"Accept\":\"text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8\",\"Accept-Encoding\":\"gzip, deflate\",\"Accept-Language\":\"fr,fr-FR;q=0.9,en-US;q=0.8,en;q=0.7\",\"Connection\":\"keep-alive\",\"Host\":\"supertest.local:8000\",\"Remote-Addr\":\"172.18.0.1\",\"Upgrade-Insecure-Requests\":\"1\",\"User-Agent\":\"Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0\"}},\"id\":\"33333333-3333-3333-3333-333333333333\",\"logtype\":\"honeytoken.js_clone\",\"namespace\":{\"id\":\"22222222-2222-2222-2222-222222222222\",\"name\":\"default\"},\"source\":\"Trapster\",\"src_ip\":\"1.2.3.4\",\"src_ip_reverse\":\"bravo\",\"src_port\":null,\"timestamp\":\"2026-02-12 14:44:59.202084+00:00\",\"type\":0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "js_clone",
"channel": "honeytoken",
"extra": {
"headers": {
"Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
"Accept-Encoding": "gzip, deflate",
"Accept-Language": "fr,fr-FR;q=0.9,en-US;q=0.8,en;q=0.7",
"Connection": "keep-alive",
"Host": "supertest.local:8000",
"Remote-Addr": "172.18.0.1",
"Upgrade-Insecure-Requests": "1",
"User-Agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0"
}
}
}
},
"destination": {
"port": 443
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"hosts": [
"bravo",
"supertest.local"
],
"ip": [
"1.2.3.4"
]
},
"source": {
"address": "1.2.3.4",
"domain": "bravo",
"ip": "1.2.3.4"
},
"url": {
"domain": "supertest.local",
"subdomain": "supertest"
},
"user_agent": {
"device": {
"name": "Other"
},
"name": "Firefox",
"original": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:147.0) Gecko/20100101 Firefox/147.0",
"os": {
"name": "Ubuntu"
},
"version": "147.0"
}
}
{
"message": "{\"source\": \"Trapster\", \"action\": \"event_new\", \"id\": \"33333333-3333-3333-3333-333333333333\", \"device\": {\"id\": \"33333333-3333-3333-3333-333333333333\", \"name\": \"My Trapster\", \"template\": \"custom\"}, \"namespace\": {\"id\": \"22222222-2222-2222-2222-222222222222\", \"name\": \"default\"}, \"channel\": \"http\", \"category\": \"query\", \"logtype\": \"http.query\", \"src_ip\": \"1.2.3.4\", \"src_port\": 39652, \"dst_ip\": \"5.6.7.8\", \"dst_port\": 80, \"timestamp\": \"2026-02-12 15:20:33.626254+00:00\", \"data\": \"\", \"extra\": {\"skin\": \"fortigate\", \"method\": \"GET\", \"target\": \"/\", \"headers\": {\"host\": \"5.6.7.8\", \"accept\": \"*/*\", \"user-agent\": \"curl/8.5.0\"}, \"status_code\": 200}, \"type\": 0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "query",
"channel": "http",
"device": {
"name": "My Trapster",
"template": "custom"
},
"extra": {
"headers": {
"accept": "*/*",
"host": "5.6.7.8",
"user-agent": "curl/8.5.0"
},
"method": "GET",
"skin": "fortigate",
"status_code": 200,
"target": "/"
}
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 80
},
"device": {
"id": "33333333-3333-3333-3333-333333333333"
},
"host": {
"name": "My Trapster"
},
"http": {
"request": {
"method": "GET"
},
"response": {
"status_code": 200
}
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"hosts": [
"5.6.7.8"
],
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4",
"port": 39652
},
"url": {
"domain": "5.6.7.8"
},
"user_agent": {
"device": {
"name": "Other"
},
"name": "curl",
"original": "curl/8.5.0",
"os": {
"name": "Other"
},
"version": "8.5.0"
}
}
{
"message": "{\"action\":\"event_new\",\"category\":\"query\",\"channel\":\"portscan\",\"data\":\"\",\"device\":{\"id\":\"33333333-3333-3333-3333-333333333333\",\"name\":\"My Trapster\",\"template\":\"custom\"},\"dst_ip\":\"5.6.7.8\",\"dst_port\":1,\"extra\":{\"flags\":[\"SYN\"],\"ports\":[\"1\",\"3\",\"4\",\"6\",\"7\",\"9\",\"13\",\"17\",\"19\",\"20\",\"21\",\"22\",\"23\",\"24\",\"25\"]},\"id\":\"28213110-e616-4193-a545-a98d61984a18\",\"logtype\":\"portscan.query\",\"namespace\":{\"id\":\"22222222-2222-2222-2222-222222222222\",\"name\":\"default\"},\"source\":\"Trapster\",\"src_ip\":\"1.2.3.4\",\"src_ip_reverse\":null,\"src_port\":1,\"timestamp\":\"2026-02-13 13:00:09.677008+00:00\",\"type\":0}",
"event": {
"action": "event_new",
"category": [
"intrusion_detection"
],
"kind": "alert",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"category": "query",
"channel": "portscan",
"device": {
"name": "My Trapster",
"template": "custom"
},
"extra": {
"flags": [
"SYN"
],
"ports": [
"1",
"13",
"17",
"19",
"20",
"21",
"22",
"23",
"24",
"25",
"3",
"4",
"6",
"7",
"9"
]
}
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 1
},
"device": {
"id": "33333333-3333-3333-3333-333333333333"
},
"host": {
"name": "My Trapster"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"ip": "1.2.3.4",
"port": 1
}
}
{
"message": "{\"source\": \"Trapster\", \"action\": \"incident_test\", \"id\": \"11111111-1111-1111-1111-111111111111\", \"device\": {\"id\": \"22222222-2222-2222-2222-222222222222\", \"name\": \"test-honeypot\", \"template\": null}, \"group\": null, \"channel\": \"test\", \"category\": \"login\", \"description\": \"Test incident\", \"src_ip\": \"1.2.3.4\", \"src_ip_reverse\": \"example.com\", \"src_port\": null, \"dst_ip\": \"5.6.7.8\", \"dst_port\": 22, \"start_time\": \"2026-01-20T15:39:55.380076+00:00\", \"end_time\": \"2026-01-20T15:40:00.380091+00:00\", \"acknowledged\": false, \"events_count\": 0, \"type\": 2}",
"event": {
"action": "incident_test",
"category": [
"intrusion_detection"
],
"end": "2026-01-20T15:40:00.380091Z",
"kind": "alert",
"reason": "Test incident",
"start": "2026-01-20T15:39:55.380076Z",
"type": [
"info"
]
},
"ballpoint": {
"trapster": {
"acknowledged": false,
"category": "login",
"channel": "test",
"device": {
"name": "test-honeypot"
},
"events_count": 0
}
},
"destination": {
"address": "5.6.7.8",
"ip": "5.6.7.8",
"port": 22
},
"device": {
"id": "22222222-2222-2222-2222-222222222222"
},
"host": {
"name": "test-honeypot"
},
"observer": {
"product": "trapster",
"vendor": "ballpoint"
},
"related": {
"hosts": [
"example.com"
],
"ip": [
"1.2.3.4",
"5.6.7.8"
]
},
"source": {
"address": "1.2.3.4",
"domain": "example.com",
"ip": "1.2.3.4"
}
}
Extracted Fields
The following table lists the fields that are extracted, normalized under the ECS format, analyzed and indexed by the parser. It should be noted that infered fields are not listed.
| Name | Type | Description |
|---|---|---|
ballpoint.trapster.acknowledged |
boolean |
|
ballpoint.trapster.category |
keyword |
|
ballpoint.trapster.channel |
keyword |
|
ballpoint.trapster.device.name |
keyword |
|
ballpoint.trapster.device.template |
keyword |
|
ballpoint.trapster.events_count |
integer |
|
ballpoint.trapster.extra |
object |
|
ballpoint.trapster.group |
keyword |
|
destination.address |
keyword |
Destination network address. |
destination.ip |
ip |
IP address of the destination. |
destination.port |
long |
Port of the destination. |
event.action |
keyword |
The action captured by the event. |
event.category |
keyword |
Event category. The second categorization field in the hierarchy. |
event.end |
date |
event.end contains the date when the event ended or when the activity was last observed. |
event.kind |
keyword |
The kind of the event. The highest categorization field in the hierarchy. |
event.reason |
keyword |
Reason why this event happened, according to the source |
event.start |
date |
event.start contains the date when the event started or when the activity was first observed. |
event.type |
keyword |
Event type. The third categorization field in the hierarchy. |
group.name |
keyword |
Name of the group. |
host.name |
keyword |
Name of the host. |
http.request.method |
keyword |
HTTP request method. |
http.response.status_code |
long |
HTTP response status code. |
observer.product |
keyword |
The product name of the observer. |
observer.vendor |
keyword |
Vendor name of the observer. |
source.address |
keyword |
Source network address. |
source.domain |
keyword |
The domain name of the source. |
source.ip |
ip |
IP address of the source. |
source.port |
long |
Port of the source. |
url.domain |
keyword |
Domain of the url. |
user_agent.original |
keyword |
Unparsed user_agent string. |
For more information on the Intake Format, please find the code of the Parser, Smart Descriptions, and Supported Events here.
