Crowdstrike Falcon

Overview

CrowdStrike Falcon is an Endpoint Detection and Response solution. This setup guide shows how to forward device assets created in CrowdStrike Falcon to Sekoia.io.

Vendor: CrowdStrike
Product: CrowdStrike Falcon
Supported environment: SaaS

Configure

How to create an API token

To connect CrowdStrike Falcon to Sekoia.io, you need to create an API key pair (Client id and Client secret) in your CrowdStrike Falcon console. Follow these steps:

Log in to the CrowdStrike interface.

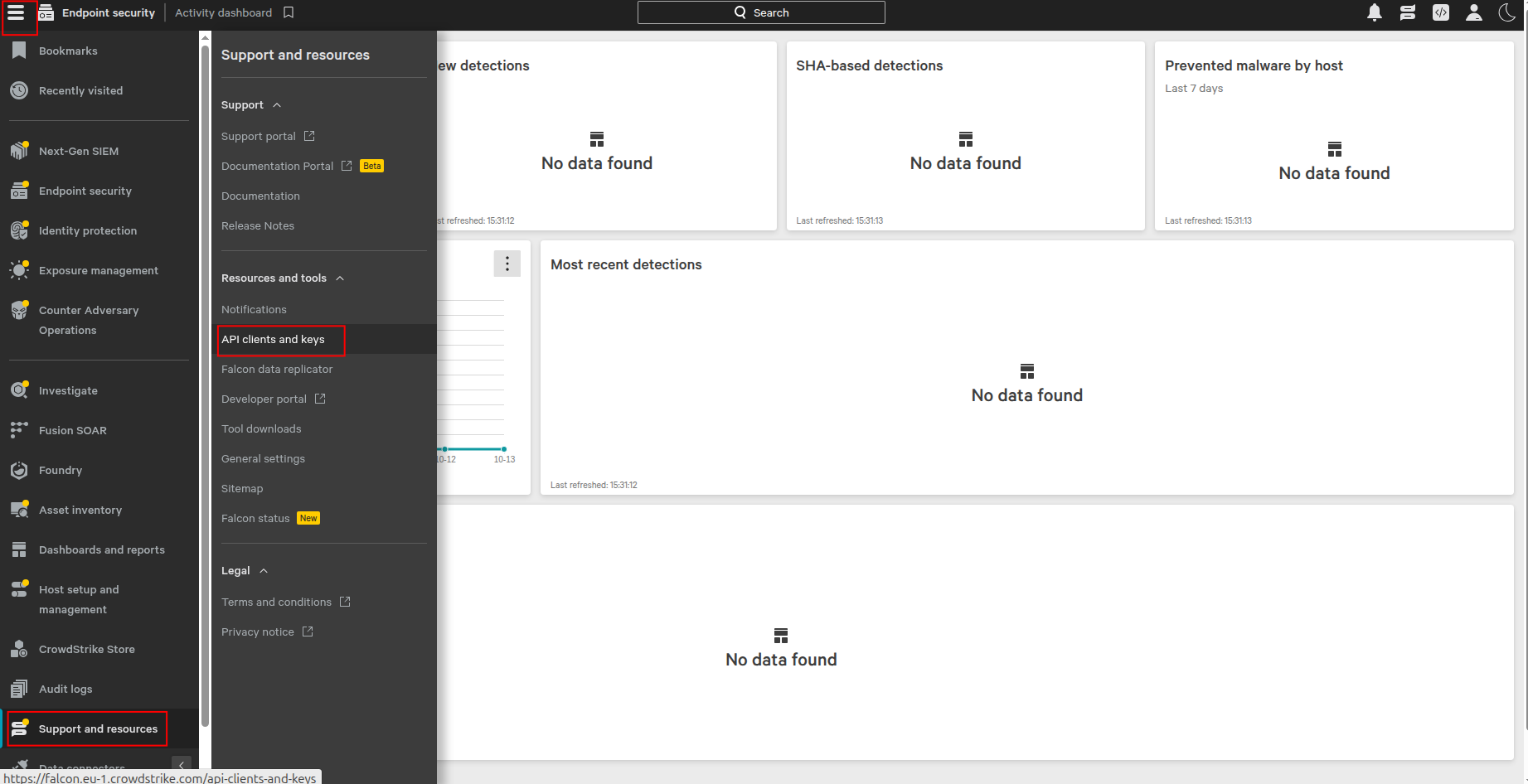

Click on the burger menu and go to Support and resources > Resources and tools > API client and keys.

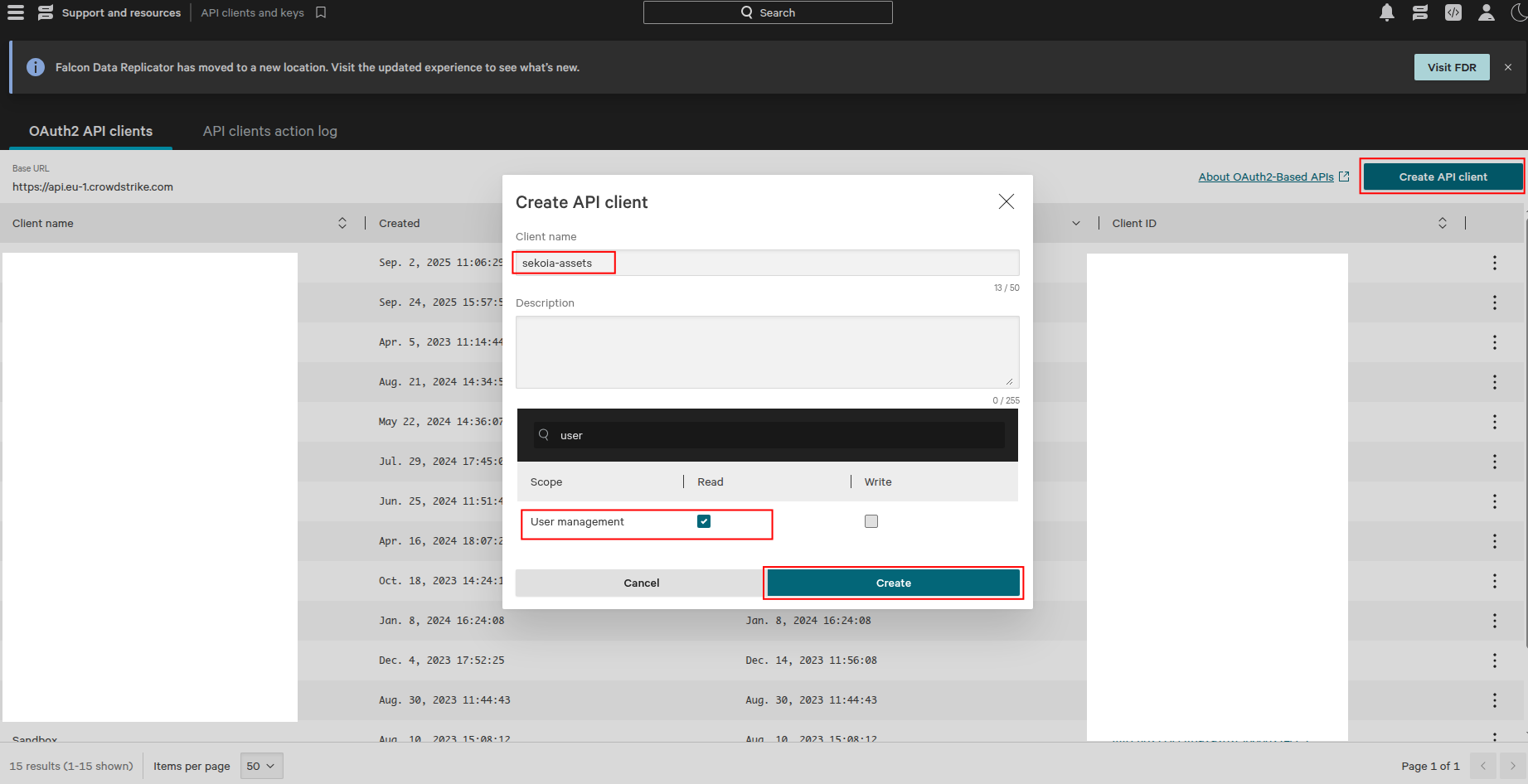

In the OAuth2 API Clients tab, create a new OAuth2 API Client with the Read and Write permissions for the scopes User Management.
Copy the api key in a safe place and start using it in Sekoia.io.

Create your asset

To start getting your CrowdStrike assets into Sekoia.io, you need to create an asset connector on the Assets page. To do so, follow these steps:

Click the Asset connectors button to create a new connector.
Click the + New connector button.

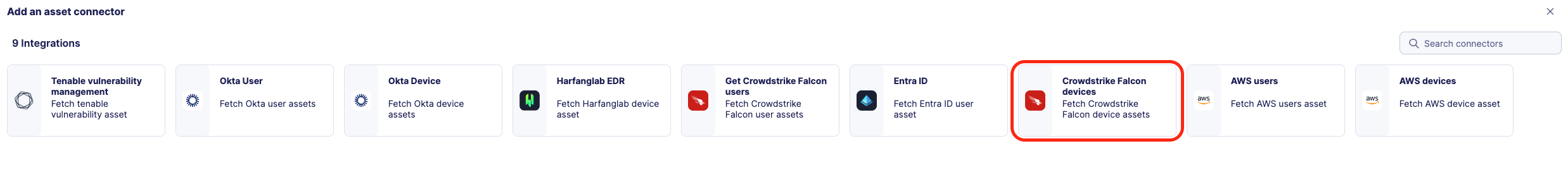

Choose CrowdStrike Falcon devices, give it a name, and fill the required fields:
Test the connection by clicking the Test connector button.
Click the Create asset connector button.

OCSF Mapping for Crowdstrike Falcon Devices

OCSF Class: Device Inventory Info

Class UID: 5001

OCSF Version: 1.6.0

Information Collected

The Crowdstrike Falcon Devices fetches comprehensive information and transforms it into the OCSF (Open Cybersecurity Schema Framework) format for standardized security monitoring and asset management.

API Response Examples

CrowdStrike falcon device sample

Sample device data from CrowdStrike Falcon API

{
  "device_id": "90111cd1dc1d1beea11cc111f1a11111",
  "cid": "d0f0000b0a000de0ab0000caf0f00fc0",
  "agent_load_flags": "0",
  "agent_local_time": "2025-09-08T12:48:35.942Z",
  "agent_version": "7.27.18003.0",
  "bios_manufacturer": "Xen",
  "bios_version": "4.11.amazon",
  "config_id_base": "66666662",
  "config_id_build": "10000",
  "config_id_platform": "8",
  "cpu_signature": "222222",
  "cpu_vendor": "0",
  "external_ip": "1.2.3.4",
  "mac_address": "00-33-66-11-99-99",
  "instance_id": "i-000b0000000a6000c",
  "service_provider": "AWS_EC2_V2",
  "service_provider_account_id": "333440842243",
  "hostname": "ip-1-2-3-4",
  "filesystem_containment_status": "normal",
  "first_seen": "2025-09-08T12:46:22Z",
  "last_seen": "2025-09-08T12:49:47Z",
  "local_ip": "2.3.0.2",
  "machine_domain": "",
  "major_version": "6",
  "minor_version": "8",
  "os_version": "Ubuntu 24.04",
  "platform_id": "3",
  "platform_name": "Linux",
  "policies": [
    {
      "policy_type": "prevention",
      "policy_id": "00000000d0000b0eb000dd00d000cd10",
      "applied": true,
      "settings_hash": "00a0000c",
      "assigned_date": "2025-09-08T12:47:56.934516164Z",
      "applied_date": "2025-09-08T12:49:50.129791663Z",
      "rule_groups": []
    }
  ],
  "reduced_functionality_mode": "no",
  "device_policies": {
    "prevention": {
      "policy_type": "prevention",
      "policy_id": "01000000d0000b0eb000dd00d0b70011",
      "applied": true,
      "settings_hash": "e0a0000c",
      "assigned_date": "2025-09-08T12:47:56.934516164Z",
      "applied_date": "2025-09-08T12:49:50.129791663Z",
      "rule_groups": []
      "firewall": "enabled"
    }
  },
  "groups": [
  {,
      "id": "default",
      "name": "default",
      "description": "Default group for all devices"
    },
    {
      "id": "managed-endpoints",
      "name": "managed-endpoints"
    }
  ],
  "group_hash": "e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855",
  "product_type_desc": "Server",
  "serial_number": "ec2c0000-0000-0000-0000-70de1a9d92c7",
  "status": "normal",
  "system_manufacturer": "Xen",
  "system_product_name": "HVM domU",
  "tags": [],
  "modified_timestamp": "2025-09-08T12:49:57Z",
  "meta": { "version": "6", "version_string": "31:15400986742" },
  "zone_group": "eu-west-3a",
  "kernel_version": "6.8.0-1026-aws",
  "chassis_type": "1",
  "chassis_type_desc": "Other",
  "pod_labels": [],
  "pod_annotations": [],
  "connection_ip": "11.00.00.00",
  "default_gateway_ip": "11.00.00.00",
  "connection_mac_address": "00-00-00-11-99-99",
  "linux_sensor_mode": "User Mode",
  "deployment_type": "Standard"
}

Data Mapping Table

The following table shows how source data is mapped to OCSF model fields:

Source Field	OCSF Field Path	Description	Data Type	Logic
`static: 2`	`activity_id`	OCSF activity ID	`integer`	Always 2 for 'Collect' activity
`static: Collect`	`activity_name`	OCSF activity name	`string`	Always 'Collect' for asset inventory
`static: Discovery`	`category_name`	OCSF category name	`string`	Always 'Discovery'
`static: 5`	`category_uid`	OCSF category UID	`integer`	Always 5 for Discovery category
`static: Device Inventory Info`	`class_name`	OCSF class name	`string`	Always 'Device Inventory Info'
`static: 5001`	`class_uid`	OCSF class UID	`integer`	Always 5001 for Device Inventory Info
`static: 500102`	`type_uid`	OCSF type UID	`integer`	Always 500102 for Device Inventory Info: Collect type
`static: Device Inventory Info: Collect`	`type_name`	OCSF type name	`string`	Always 'Device Inventory Info: Collect' for this specific event type
`static: Informational`	`severity`	Event severity	`string`	Always 'Informational' for inventory events
`static: 1`	`severity_id`	OCSF severity ID	`integer`	Always 1 for Informational severity
`modified_timestamp`	`time`	OCSF event timestamp	`timestamp`	Convert ISO 8601 to Unix epoch; use for OCSF event timestamp; fallback to first_seen
`static: CrowdStrike Falcon`	`metadata.product.name`	Source product name	`string`	Always 'CrowdStrike Falcon'
`static: N/A`	`metadata.product.version`	Product version	`string`	CrowdStrike API does not provide a single product version field; using 'N/A'
`static: 1.6.0`	`metadata.version`	OCSF schema version	`string`	Fixed OCSF schema version
`device_id`	`device.uid`	Device unique identifier	`string`	Direct mapping of CrowdStrike device unique ID
`hostname`	`device.hostname`	Device hostname	`string`	Direct mapping of device hostname
`product_type_desc`	`device.type`	Device type	`string`	Map product_type_desc: 'server'→Server, 'workstation'→Desktop, 'desktop'→Desktop, 'laptop'→Laptop, 'mobile'→Mobile, 'tablet'→Tablet, 'virtual'→Virtual
`product_type_desc`	`device.type_id`	OCSF device type ID	`integer`	Map device type to OCSF ID: Server→1, Desktop→2, Laptop→8, Mobile→9, Tablet→10, Virtual→16, Unknown→0
`platform_name`	`device.os.type`	Operating system type	`string`	Map platform_name: 'windows'→Windows, 'linux'→Linux, 'mac'→macOS, 'ios'→iOS, 'android'→Android
`platform_name`	`device.os.type_id`	OCSF operating system type ID	`integer`	Map OS type to OCSF ID: Windows→100, Linux→200, macOS→300, iOS→400, Android→401, Unknown→0
`os_version`	`device.os.name`	Operating system name with version	`string`	Direct mapping of OS version string (e.g., '10 (Build 19045)', 'Ubuntu 20.04 LTS')
`external_ip`	`device.ip`	Primary device IP address	`ip`	Direct mapping of external IP address as primary device IP
`local_ip`	`device.network_interfaces[0].ip`	Primary network interface IP address	`ip`	Direct mapping of local IP address for primary interface
`mac_address`	`device.network_interfaces[0].mac`	Primary network interface MAC address	`string`	Normalize MAC address to format 'XX:XX:XX:XX:XX:XX'
`hostname`	`device.network_interfaces[0].hostname`	Primary interface hostname/DNS name	`string`	Direct mapping of device hostname
`static: primary`	`device.network_interfaces[0].name`	Primary interface name	`string`	Always 'primary' for first network interface
`connection_ip`	`device.network_interfaces[1].ip`	Connection/external network interface IP address	`ip`	Map connection_ip only if different from local_ip; skip if identical
`connection_mac_address`	`device.network_interfaces[1].mac`	Connection interface MAC address	`string`	Normalize MAC address to format 'XX:XX:XX:XX:XX:XX'; only if connection_ip differs from local_ip
`static: connection`	`device.network_interfaces[1].name`	Connection interface name	`string`	Always 'connection' for second network interface if it exists
`default_gateway_ip`	`device.subnet`	Default gateway/subnet identifier	`ip`	Direct mapping of gateway IP as subnet reference
`serial_number`	`device.uid_alt`	Alternative device identifier (serial number)	`string`	Direct mapping of device serial number
`machine_domain`	`device.domain`	Device domain membership	`string`	Direct mapping of machine domain
`hostname`	`device.name`	Device name	`string`	Direct mapping of device hostname as name
`first_seen`	`device.first_seen_time`	First seen timestamp for device	`timestamp`	Transform first_seen to timestamp
`last_seen`	`device.last_seen_time`	Last seen timestamp for device	`timestamp`	Transform last_seen to timestamp
`first_seen`	`device.created_time`	Device creation timestamp	`timestamp`	Use first_seen as device created_time; convert to timestamp
`agent_local_time`	`device.boot_time`	Device boot time (approximation from agent local time)	`timestamp`	Use agent_local_time as proxy for device boot time; convert to timestamp
`system_product_name`	`device.model`	Device model name	`string`	Direct mapping of system product name
`system_manufacturer`	`device.vendor_name`	Device hardware vendor/manufacturer	`string`	Direct mapping of system manufacturer
`bios_manufacturer`	`device.hypervisor`	Hypervisor or BIOS manufacturer	`string`	Direct mapping of BIOS manufacturer (hypervisor for virtual devices)
`product_type_desc`	`device.desc`	Device description based on product type	`string`	Direct mapping of product type description
`zone_group`	`device.region`	Geographic zone or region	`string`	Direct mapping of zone/region grouping
`cid`	`device.org.uid`	Organization/Customer unique identifier	`string`	Direct mapping of CrowdStrike CID (customer ID)
`service_provider`	`device.org.name`	Organization name	`string`	Direct mapping of service provider as organization name
`id`	`device.groups[].uid`	Unique identifier for device group membership	`string`	Map each group ID to device.groups array with uid
`name`	`device.groups[].name`	Name of device group membership	`string`	Map each group name to device.groups array with name
`desc`	`device.groups[].desc`	Description of device group membership	`string`	Optional description for device group; not provided in CrowdStrike API, set to null or default value
`zone_group`	`device.location.region`	Device geographic region (mapped from zone_group)	`string`	Map zone_group to device location region; use same value as device.region for consistency
`static: True`	`device.is_managed`	Whether device is under active management	`boolean`	Set to true because it's managed by crowdstrike falcon
`status + reduced_functionality_mode + filesystem_containment_status`	`device.is_compliant`	Device compliance status	`boolean`	true if status='normal' AND reduced_functionality_mode='no' AND filesystem_containment_status='normal'; else false; null if unable to determine
`static: compliance`	`enrichment[].name`	Enrichement compliance name	`string`	Always 'compliance' for this enrichment type
`static: hygiene`	`enrichment[].value`	Enrichement compliance value	`string`	Always 'hygiene' for this enrichment value
`device_policies.firewall`	`enrichment[].data.Firwall_status`	Enrichement data value	`string`	If firwall is enabled, set to 'enabled'; if disabled, set to 'disabled''

OCSF Model Structure

Device Inventory Info

Transformed CrowdStrike falcon api response to OCSF Device Inventory Info

{
  "activity_id": 2,
  "activity_name": "Collect",
  "category_name": "Discovery",
  "category_uid": 5,
  "class_name": "Device Inventory Info",
  "class_uid": 5001,
  "type_name": "Device Inventory Info: Collect",
  "type_uid": 500102,
  "severity": "Informational",
  "severity_id": 1,
  "time": 1725011130,
  "metadata": {
    "product": {
      "name": "CrowdStrike Falcon",
      "version": "7.8.0.0"
    },
    "version": "1.6.0"
  },
  "device": {
    "uid": "abc000def000ghi000",
    "uid_alt": "1A2B3C4D5E6F",
    "name": "WORKSTATIONTEST-001",
    "hostname": "WORKSTATIONTEST-001",
    "type": "Desktop",
    "type_id": 2,
    "vendor_name": "Dell Inc.",
    "model": "OptiPlex 7090",
    "hypervisor": "Dell Inc.",
    "ip": "1.1.1.1",
    "domain": "example.com",
    "region": "US-EAST",
    "state": "Normal",
    "agent_version": "7.8.0.0",
    "is_managed": true,
    "is_compliant": true,
    "created_time": 1705329000,
    "boot_time": 1725011130,
    "updated_time": 1725011130,
    "subnet": "192.168.1.1",
    "desc": "Workstation - Windows",
    "os": {
      "name": "10 (Build 19045)",
      "type": "Windows",
      "type_id": 100
    },
    "network_interfaces": [
      {
        "name": "primary",
        "ip": "192.168.1.100",
        "hostname": "WORKSTATION-001",
        "mac": "00:1A:2B:3C:4D:5E"
      }
    ],
    "groups": [
      {
        "uid": "default",
        "name": "default"
      },
      {
        "uid": "managed-endpoints",
        "name": "managed-endpoints"
      }
    ],
    "org": {
      "uid": "abc123def456",
      "name": "CrowdStrike"
    }
  }
}
